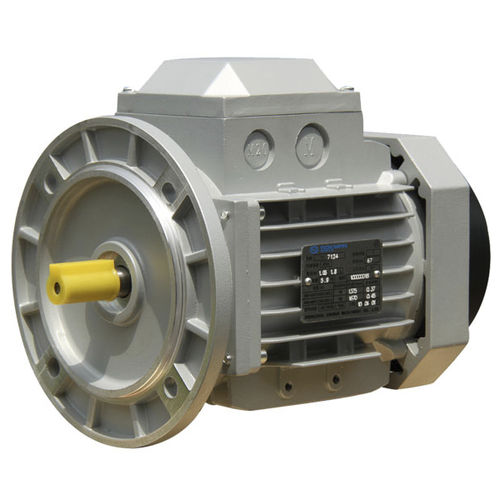

Asynchronous motor YE2 Series

ACaluminiumwaterproof

YE2 Series High Efficiency IE2 AC Motors Power: 0.75 kW~22 kW Poles: 2P, 4P, 6P Frequency: 50Hz/60Hz Protection Class: IP54, IP55, IP56 Insulation Class: F Bearing: C&U, NSK, SKF Efficiency Class: IE2 AOKMAN® YE2 series 3 phase AC asynchronous motors (induction motors) adopts IEC standards, IE2 energy efficiency, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life. Components: 1. Housing: Die-casting Aluminum 2. Shaft: 40Cr 3. Magnet Wires: QZ-2/155, QZ-2/180 4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600 5. Bearings: C&U, NSK, SKF Models & Parameters: Voltage: 380V Frequency: 50Hz/60Hz Power: 0.75 kW~22 kW (1HP~30HP) Poles: 2P, 4P, 6P Output Speed: 3000RPM, 1500RPM, 1000RPM Frame Sizes: H80~H180 Shaft Diameter: Φ19~Φ48 Efficiency Class: IE2 Ingress Protection: IP54, IP55, IP56 Insulation Level: F Duty: Continuous duty (S1) Cooling: IC411 Mounting Options: IM B3 IM B5, IM B14 IM B34, IM B35
