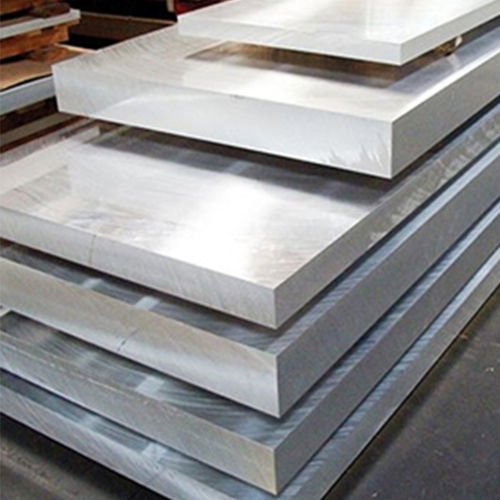

Aluminum plate for the automotive industry
Add to favorites
Compare this product
Characteristics
- Shape
- plate
- Other characteristics
- for the automotive industry
- Thickness
Max.: 3.5 mm
(0.138 in)Min.: 0.2 mm
(0.008 in)- Length
10,000 mm
(393.7 in)- Width
Max.: 2,650 mm
(104.33 in)Min.: 2,000 mm
(78.74 in)- Mechanical resistance
Max.: 225,000,000 Pa
(32,633.5 psi)Min.: 180,000,000 Pa
(26,106.8 psi)- Elasticity
150,000,000 Pa
(21,755.7 psi)
Description
4017 H16 Aluminium Plate Sheet For Car Trailer ENAW / GB Standard
Product Description
Specification
Alloy: 4017
Temper: H16
Thickness(mm): 0.2-3.5
Width(mm): 2000-2650
Length(mm): ≥10000
Mechanical Properties
Alloy: 4017
Temper: H16
Yield Strength Rp0.2(Mpa): ≥150
Tensile Strength Rm(Mpa): 180-225
Elongation at Break A80%: ≥3
Chemical Composition
Alloy: 4017
Si: 0.6-1.6
Fe: 0.7
Cu: 0.10-0.50
Mn: 0.6-1.2
Mg: 0.10-0.50
Cr: -
Zn: 0.20
Ti: -
Standard: EN/GB
Typical applications of 4017 H16:
Applied to the Van trailer's roof and side plate.
