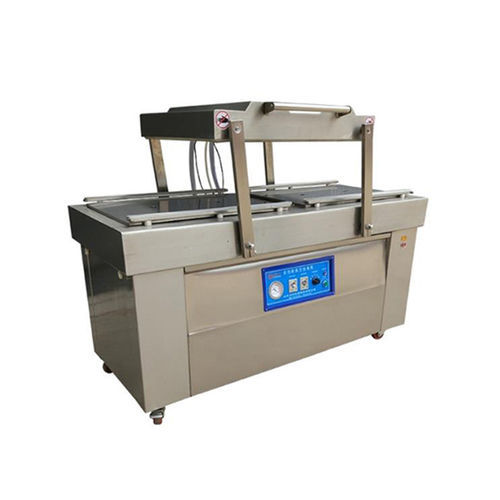

Dual chamber vacuum box DZ500S

Main Specifications:

• Model: DZ500S
• Type: Double chamber
• Overall size: 1200×660×900 mm
• Sealing size: 500×10 mm (4 mm bar × 1 or 2 bars as configured)
• Speed: 2–5 cycles/min
• Voltage: 220V/380V, 50/60 Hz (other voltages available)
• Power: 2.4 kW
• Construction: stainless steel body (standard)

Introduction:
Double chamber vacuum packing machine DZ500S evacuates air from packaging bags inside its two chambers and can perform inert gas flushing when required to reduce oxidation and extend product life. The machine is designed for continuous operation by alternating chambers to maintain throughput and minimize downtime.

Working process:
With the chamber lids closed, the vacuum pump evacuates the chamber until the preset vacuum level is reached. The machine then (optionally) performs an inert gas flush, heats the sealing bar to seal the bag mouth and completes the cycle. While one chamber is processing, the operator can load/unload the other chamber to maximize productivity.

Main Models:

• DZ500S double chamber
• DZ600S double chamber
• DZ700S double chamber
• DZ800S double chamber
• DZ900S double chamber

Technical specifications:

• Model: DZ500S
• Type: Double chamber
• Overall dimensions: 1200×660×900 mm
• Sealing length: 500×10 mm
• Production speed: 2–5 cycles per minute (dependent on product and film)
• Power supply: 220V/380V, 50/60 Hz (custom options available)
• Power consumption: 2.4 kW

Applications:

• Food packaging (meat, cheese, processed foods)
• Pharmaceutical and medical device packaging
• Electronics and corrosion-sensitive components
• Industrial parts and chemicals requiring controlled atmosphere

Options & maintenance:

• Optional inert gas (N2) flushing system
• Various vacuum pump brands and capacities
• Digital/PLC controller and timer settings
• Easy-access chambers and service panels for routine maintenance
