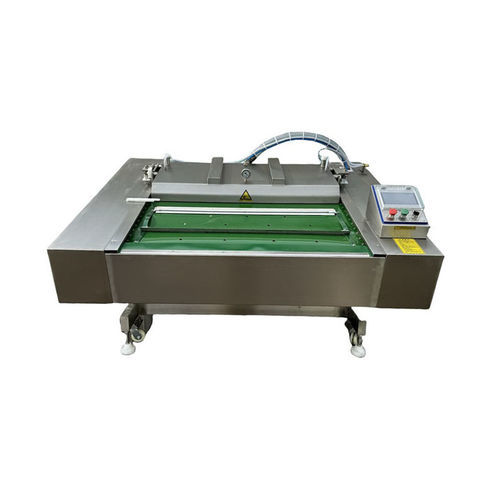

Automatic packaging machine DZ1100-540

PLC-controlledvacuumcontinuous-motion

Main Specifications

• Model: DZ1100-540
• Overall dimensions: 1930×1650×1450 mm
• Chamber size: 1220×540×110 mm
• Sealing width: 1100 mm
• Maximum bag length: 420 mm
• Capacity: 2–10 cycles/min (depending on bag size and product)
• Installed power: 7.5 kW
• PLC control system: Integrated
• Vacuum pump: 200 m3/hr (external)
• Other available models: DZ1100-610, DZ1100-680

Introduction
Continuous vacuum packing machine (rolling-type) is a fully automatic solution designed for high-throughput vacuum packaging. The machine is composed of an upper cover (vacuum chamber), a conveyor belt working platform, frame and transmission system, PLC control and an external vacuum pump. It supports continuous operation and is suitable for lines requiring steady packaging output.

Applications
Suitable for vacuum packing products containing liquids or soups and compatible with a wide range of plastic packaging bags. Commonly used for raw and cooked foods, fruits, native products, medicinal materials, chemicals, instruments, textiles, hardware and electronic components.

Characteristics / Technical specifications

• Type: Continuous / rolling-type vacuum packing machine
• Automation: Fully automatic
• Main components: Upper vacuum chamber, conveyor belt platform, frame, transmission, PLC control, external vacuum pump
• Chamber internal dimensions: 1220×540×110 mm
• Maximum sealing width: 1100 mm
• Maximum bag length: 420 mm
• Production capacity: 2–10 cycles per minute (dependent on bag size and product)
• Installed power: 7.5 kW
• Vacuum pump capacity: 200 m3/hr (external)
• Control: PLC integrated
• Typical uses: Foods with liquids/soups, solids, powders and non-food items requiring vacuum packaging
• Available variants: DZ1100-540, DZ1100-610, DZ1100-680
