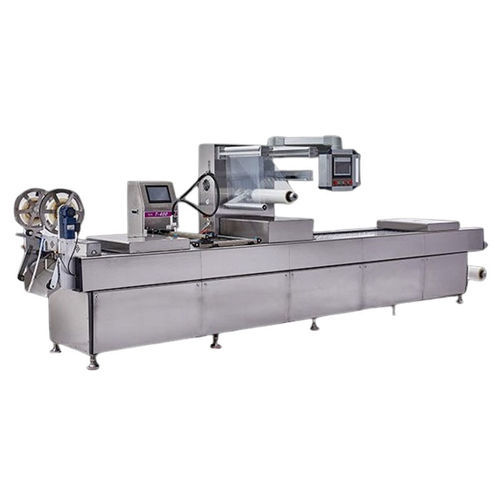

Roll-fed thermoforming machine DZR series

plastic filmfor packagingfor food packaging

Main Specifications
Model: DZR-420

• Size: 6000×1100×1860 mm
• Main material: SUS304 stainless steel
• Power: 16 kW
• Hot sealing time: 1.5–2.5 s
• Vacuum degree: max 200 Pa
• Sealing temperature: 125–150 ℃
• Mold size: max 390×384 mm
• Laser coding: prints QR code, production date, shelf life

Model: DZR-520

• Size: 7350×1100×1860 mm
• Main material: SUS304 stainless steel
• Power: 16 kW
• Hot sealing time: 1.5–2.5 s
• Vacuum degree: max 200 Pa
• Sealing temperature: 125–150 ℃
• Mold size: max 390×384 mm
• Laser coding: prints QR code, production date, shelf life

Introduction
The fully automatic thermoforming vacuum packing machine processes roll-fed packaging film in a forming chamber where the film is heated and drawn under vacuum to form individual packages. It supports continuous thermoforming and vacuum sealing for food and non-food products and is intended for integration into industrial production lines. Sealing parameters and form size are adjustable to match different materials and product formats.

Additional Features

• Continuous thermoforming and vacuum packing suitable for high-throughput production
• Stainless steel (SUS304) construction for sanitary operation and washdown compatibility
• Adjustable sealing temperature and hot sealing time to accommodate various film types
• Integrated laser coding for on-line printing of QR codes, dates and shelf-life information

Technical specifications

• Models: DZR-420, DZR-520 (DZR series)
• Overall sizes: 6000×1100×1860 mm (DZR-420); 7350×1100×1860 mm (DZR-520)
• Main material: SUS304 stainless steel
• Installed power: 16 kW
• Hot sealing time: 1.5–2.5 s
• Maximum vacuum degree: 200 Pa
• Sealing temperature range: 125–150 ℃
• Maximum mold size: 390×384 mm
• Laser coding: QR code, production date, shelf life printing capability
