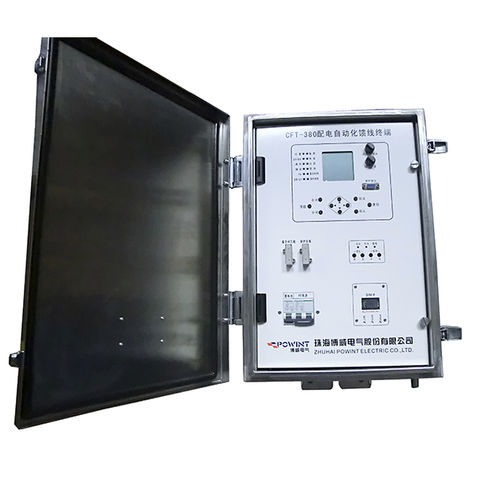

Distribution FTU CFT-380

1. Main performance index Ø Voltage input nominal value: Phase voltage: AC 3.25V/, Zero sequence voltage: AC 6.5V/3; Ø Current input nominal value: Phase current：AC 1V, Zero sequence current: AC 0.2V; Ø Power consumption: ≤20VA（No communication module and backup power supply） Ø Voltage measurement accuracy: phase voltage ≤0.5％（0.5 grade), Zero sequence voltage：0.5％（0.5 grad）; Ø Current measurement accuracy: Phase measurement≤0.5％（≤1.2In）, Phase protection value≤3％(≤10In), Zero-sequence current 0.5 grad； Ø Power measurement accuracy: active power, reactive power accuracy≤1％（1 grade）; Ø Power Accuracy: Active Power: 0.5S, Reactive Power:Level 2 Ø DC sampling accuracy: 0.5 grade; Ø Frequency measurement accuracy: ≤±0.02Hz; Ø Quick break protection inherent action time is not more than 20ms 2. Main Function Ø Remote control, Telemetry, Remote communication Ø Power management  Ø Non-interruption current protection Ø Zero-sequence voltage protection Ø Fault recording Ø Maintenance debugging
