Most ZIEHL-ABEGG external-rotor motors are fitted with thermostatic switches (TB). Explosion-proof external-rotor motors include temperature probes (TP). IEC-standard motors may integrate TP or PTC thermistors. Commercial motor protectors or bimetal line releases that operate only on current or temperature often provide incomplete protection. ZIEHL-ABEGG motor protection devices deliver reliable protection and monitoring, including for motors driven by voltage control or operating at high switching frequency. The devices prevent automatic restart after a fault-related cool-down and allow protection of multiple motors by a single unit.

Product specification

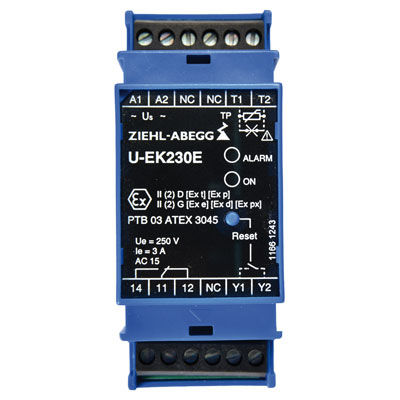

ZIEHL-ABEGG supplies protection and monitoring devices that evaluate signals from thermostatic switches (TB) and temperature probes (TP/PTC) to protect and supervise these motors. Versions are available for single-phase (1~) and three-phase (3~) supplies.

Properties & special features

• 3~ motor protection units monitor integrated thermostatic switches (TB), providing full thermal motor protection and enabling straightforward current distribution to multiple fans.
• Multiple fans can be connected to a single 3~ unit; an integrated overcurrent trip provides line protection (safety/fuse function).

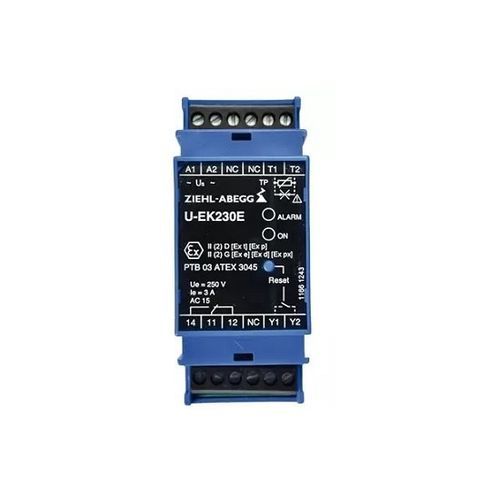

• 1~ units monitor one connected motor each (TP thermostatic switch).
• Monitoring devices for temperature probes (TP) also enable protection of explosion-proof motors and support PTC-triggered shutdown.

Version / Scope of functions

• 3~ units: manual switching function, full motor protection, current distribution, integrated overcurrent trip for line protection.
• 1~ units: manual switching function, full motor protection.
• TP monitoring device: suitable for monitoring Ex motors; relay output for motor shutdown control (PTC trigger unit).

Technical characteristics / specifications

• Full thermal protection via supervision of thermostatic switches (TB) and temperature probes (TP).
• Compatible with ZIEHL-ABEGG external-rotor motors equipped with TB and with motors fitted with TP or PTC (IEC standard).
• Available in single-phase (1~) and three-phase (3~) versions depending on model.
• Ability to connect and protect multiple motors/fans with a single 3~ device.
• Integrated overcurrent trip on selected models for line protection.
• Manual switching function and relay outputs for motor shutdown control.
• Designed for reliable operation under voltage control and high switching frequency.
