Differential pressure sensor
for airfor HVAC systemswith humidity measurement

Differential pressure sensor - ZIEHL-ABEGG - for air / for HVAC systems / with humidity measurement

Differential pressure sensor - ZIEHL-ABEGG - for air / for HVAC systems / with humidity measurement - image - 2

Differential pressure sensor - ZIEHL-ABEGG - for air / for HVAC systems / with humidity measurement - image - 3

Differential pressure sensor - ZIEHL-ABEGG - for air / for HVAC systems / with humidity measurement - image - 4

Differential pressure sensor - ZIEHL-ABEGG - for air / for HVAC systems / with humidity measurement - image - 5

Differential pressure sensor - ZIEHL-ABEGG - for air / for HVAC systems / with humidity measurement - image - 6

Add to favorites

Compare this product

Characteristics

Pressure type

differential

Fluid

for air

Applications

for HVAC systems

Other characteristics

with humidity measurement, with temperature sensor, combined

Pressure range

Max.: 11,000 bar
(159,541.51 psi)

Min.: -11,000 bar
(-159,541.51 psi)

Description

Overview
ZIEHL-ABEGG provides an extensible, combinable control system. ZIEHL-ABEGG sensors are specifically developed to interface with ZIEHL-ABEGG controllers, ensuring compatibility and functional integration. The product range covers sensors for multiple applications and is available in numerous models.

Functions and sensor types

Temperature sensors
Pressure sensors
Differential pressure sensors
Air velocity sensors
Combined sensors (CO2 / humidity / temperature)
Combined humidity and temperature sensors
Differential pressure switches

Integration notes
Measurement ranges and signals for ZIEHL-ABEGG sensors are preconfigured in ZIEHL-ABEGG controllers to allow selection of operating modes. The sensor power supply is provided via the ZIEHL-ABEGG controller (supply voltage integrated in the controller).

Images / representations

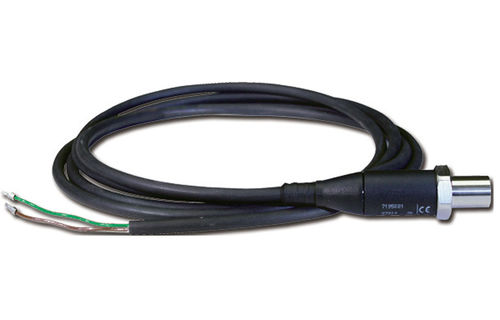

Pressure sensor
Combined humidity, CO2 and temperature sensor
Air velocity sensors
Differential pressure switch
Combined humidity and temperature sensor
Temperature sensors
Differential pressure sensor

Main models presented on this page

TFR room temperature sensor — Article no.: 00089846
TFR-E — Article no.: 00153406
TFT Tauchtemperaturfuehler — Article no.: 00154797
MBG-30I — Article no.: 384000
MPR300 — Article no.: 384020
TFT (XL) — Article no.: 384027
MBG-30I (plug) — Article no.: 384028
MTG-120V — Article no.: 384031
MBG-50I (plug) — Article no.: 384036
MFTG-100V 2nd edition — Article no.: 384046
MCFTG-3AV 2nd edition (CO2/humidity/temperature) — Article no.: 384047
MPG-200V 2nd edition (Differential pressure sensor with range selection) — Article no.: 384057
MPG-1000V 2nd edition — Article no.: 384058
MLG-1V Werkszeugnis nach DIN EN 10204 2. — Article no.: 384061
MLG-10V Werkszeugnis nach DIN EN 10204 2 — Article no.: 384065
TFW Wohnraumtemperaturfuehler — Article no.: 384066
TFA Contact temperature sensor — Article no.: 00153407
TFK Kanaltemperaturfuehler — Article no.: 384022
MBG-50I — Article no.: 384030
MBG-7I (plug) — Article no.: 384042
MPG-6000V 2nd edition — Article no.: 384059
MLG-1V inspection certificate according — Article no.: 384062
MLG-1VX Werkszeugnis nach DIN EN 10204 2 — Article no.: 384063
MLG-1VX inspection certificate according — Article no.: 384064

Characteristics / technical specifications

Extensible, combinable sensor system designed for optimal integration with ZIEHL-ABEGG controllers
Wide range of types: temperature, pressure, differential pressure, air velocity, combined CO2/humidity/temperature sensors, differential pressure switches
Measurement ranges and signals pre-stored in controllers to simplify configuration
Sensor power supply supported via the controller (supply voltage integrated)
Number of models shown on the page: 24
