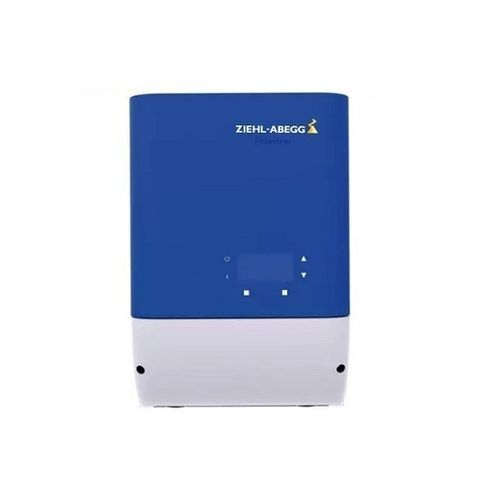

Single-phase frequency inverter Fcontrol

3-phaseIP54integrated

Overview
Fcontrol and Icontrol are frequency inverters from ZIEHL-ABEGG for motor and fan control in ventilation and air-handling applications. Devices are designed for straightforward operation and rapid commissioning; enclosures are IP54 for direct mounting outdoors or on HVAC units.

Applications

• Ventilation and air handling
• Process air and building HVAC
• Axial and industrial fans
• Agricultural ventilation systems

Fcontrol — Product specification

• Integrated all-pole sine filter and sinusoidal output voltage
• Operation without shielded motor cable and without cable length limitation
• Limits additional stress on winding insulation and motor bearings
• Smooth, energy-efficient operation with low electromagnetic motor noise

Versions & power range

• 1~ Fcontrol: 4–10 A
• 3~ Fcontrol: 2.5–50 A

Functions & variants

• Fcontrol Basic: speed controller, extendable with add-on modules
• Optional: speed controller with integrated 5-position selector
• Preset operating modes for easy selection
• Integrated additional inputs and outputs
• Industry-specific variants (e.g. 1~ Fcontrol as ventilation controller for agricultural applications)

Icontrol / PMIcontrol

• Standard frequency inverter, intended for operation with shielded motor cables
• 3~ Icontrol: 2.6 A (1.1 kW) – 60 A (30 kW)
• Icontrol Basic and PMIcontrol Basic-M variants, extendable and suitable for direct mounting on IEC or PM motors

Technical specifications

• Brand: ZIEHL-ABEGG
• Enclosure rating: IP54 (direct mounting possible)
• Fcontrol: integrated all-pole sine filter, sinusoidal output
• Current ranges: Fcontrol 1~ 4–10 A; Fcontrol 3~ 2.5–50 A; Icontrol 3~ 2.6–60 A
• Expandable via add-on modules; integrated inputs/outputs; selectable operating modes

Documentation
Brochures and datasheets for Fcontrol, Icontrol and PMIcontrol are available for download.
