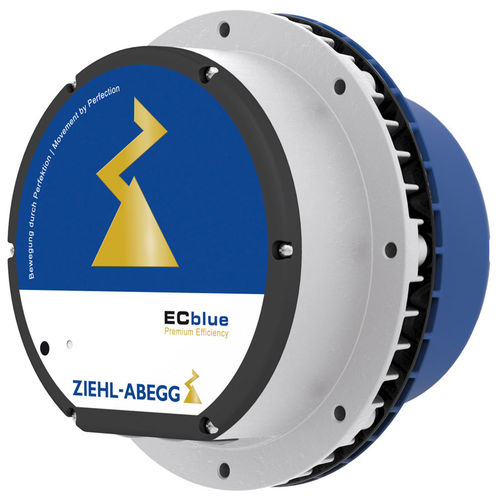

Electronically commutated motor ECblueACmodularexternal rotor
Add to favorites
Compare this product
Characteristics
- Type
- electronically commutated, AC
- Configuration
- modular, external rotor, compact
- Protection class
- IP55, IP54, IP20
- Efficiency classes
- IE4
- Other characteristics
- high-efficiency, energy-saving, standard
- Power
Min.: 1 kW
(1.36 hp)Max.: 6 kW
(8.16 hp)
Description
Overview
With ECblue motors from ZIEHL-ABEGG you reduce energy consumption to a minimum. At the same time you ensure your systems meet market and customer requirements for environmentally friendly technologies. ECblue motors comply with relevant EU energy-efficiency directives; their efficiencies exceed the minimum required for IE4 and meet IE5 (IEC60034-30-2) requirements. ECblue high-efficiency motors deliver extremely compact cutting-edge technology and, in combination with ZIEHL-ABEGG axial and radial impellers, provide a complete optimized package.
Product specification:
Properties & special features:
Applications
Characteristics / technical specifications:
With ECblue motors from ZIEHL-ABEGG you reduce energy consumption to a minimum. At the same time you ensure your systems meet market and customer requirements for environmentally friendly technologies. ECblue motors comply with relevant EU energy-efficiency directives; their efficiencies exceed the minimum required for IE4 and meet IE5 (IEC60034-30-2) requirements. ECblue high-efficiency motors deliver extremely compact cutting-edge technology and, in combination with ZIEHL-ABEGG axial and radial impellers, provide a complete optimized package.
Product specification:
- Electronically commutated external-rotor motor with integrated ECblue controller
- Meets efficiency class IE5 (IEC60034-30-2)
- Power range: 0.10–6 kW
- Voltage ranges: 1~200-277V 50/60Hz; 3~200-240V 50/60Hz; ~380-480V 50/60Hz
- Integrated motor protection; active temperature management
- Interference emission: EN IEC 61000-6-3
- Interference immunity: EN IEC 61000-6-2
- Degree of protection: IP20, IP54, IP55
- Approvals: UL
- Integrated connectivity available
- Bluetooth optional
Properties & special features:
- High-efficiency, energy-saving motor thanks to ECblue technology
- ZAcode interface
- Compact, modular design
- Easy installation and start-up
- Flexible customer interface; scalable
- UL approval as standard
Applications
- Ventilation and exhaust systems for industrial kitchens, bakeries and confectionery
Characteristics / technical specifications:
- Series / model name: ECblue
- Type: Electronically commutated external-rotor motor with integrated controller
- Efficiency class: meets IE5 (IEC60034-30-2), exceeds IE4 minimum
- Power range: 0.10–6 kW
- Voltage ranges: 1~200-277V 50/60Hz; 3~200-240V 50/60Hz; ~380-480V 50/60Hz
- Protection & thermal: integrated motor protection; active temperature management
- EMC standards: emission EN IEC 61000-6-3; immunity EN IEC 61000-6-2
- Degree of protection options: IP20, IP54, IP55
- Connectivity: integrated connectivity available; Bluetooth optional
- Approvals: UL
