Centrifugal fan ZA

mobilefor air circulationextraction

Overview

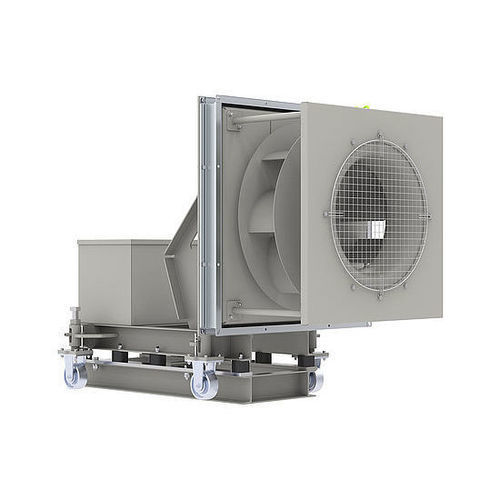

ZAmovevent is the mobile centrifugal fan from ZIEHL-ABEGG, designed for easy on-site movement with casters and offering free choice of motor. The modular concept enables individual combination and modification of system components and ensures compatibility with numerous ZIEHL-ABEGG accessories.

Product specification
Free-wheel centrifugal fans without housing. Special design with a base and counter-frame that are easily mobile on casters. Quick and easy replacement and maintenance. Motor selectable according to application requirements.

Features & particularities

• Flexible adaptation to existing system designs
• Pneumatic brake, e.g. for emergency stop mode
• Industrial-design chassis and counter-chassis
• Wheels and inlet nozzles configurable
• Adaptation to required operating point
• Return devices greased and lubricated with oil
• Choice of color finishes
• Compatible with a full range of accessories, e.g. vibration monitoring, temperature monitoring, speed control
• Annular duct for volumetric flow determination A25
• ATEX versions for Zone 1 and 2 available

Motor concepts

• IEC-compliant motors, e.g. IMB3 or IMB5

Applications

• AC / air handling units
• Paint shops and extraction systems

Technical specifications

• Type: mobile centrifugal fan (ZAmovevent / Roll Out)
• Design: free-wheel centrifugal fan without housing with wheeled base and counter-frame
• Motor: freely selectable motor, IEC-compliant (e.g. IMB3, IMB5)
• Safety options: pneumatic brake for emergency stop
• Chassis: industrial-design chassis and counter-chassis
• Customization: configurable wheels, inlet nozzles and color finishes
• Accessories: vibration monitoring, temperature monitoring, speed control
• Components: return devices greased and lubricated with oil
• Measurement: annular duct for volumetric flow determination A25
• Compliances / special versions: ATEX Zone 1 and 2 available
• Maintenance: quick and easy replacement and maintenance
