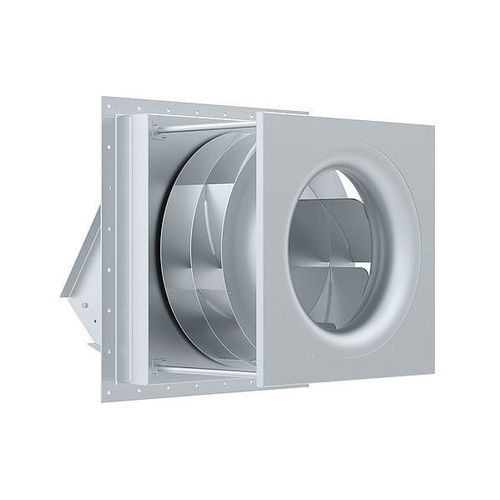

Radial fan PR 902

for air circulationdryingwith asynchronous motor

Presentation
All standard series as well as customer-specific solutions are equipped with the design program developed by ZIEHL-ABEGG and with drive technology optimized for energy efficiency. Perfect adaptation to the customer's individual requirements is a priority. Energy and operating costs are further reduced by a specially designed and matched system — both in standard applications and in special fields. We therefore offer optimal solutions for every application, always according to the highest quality standards. ZIEHL-ABEGG integrated fans are particularly suitable for drying technology or for packaging and production machinery, for example.

Product specification

• Integrated free-running insulated radial fans.
• Radial fans to be integrated into equipment, without housing.
• Max. fluid temperature +550 °C.

Features & particularities
Radial fans designed for integration into equipment, without housing. Maximum admissible fluid temperature +550 °C. High-performance impeller with backward-curved blades. Support plate available in square, rectangular or round design. Support housing available in square or rectangular design. For the support plate: angled modular design with mounted and adjusted inlet nozzle, or as motor-turbine with separate or mounted inlet nozzle. Support housing mounting depth selectable.

Motor concepts

• Standard IEC motor types: IMB3 or IMB5.
• Special motors also possible: ISO H or with stainless-steel shafts.

Applications

• Drying technology
• Packaging and production machines

Characteristics / technical specifications

• Type: Integrated insulated radial fan, without housing.
• Impeller: high-performance with backward-curved blades.
• Max. fluid temperature: +550 °C.
• Available supports: support plate square, rectangular or round.
• Support housings: square or rectangular, installation depth selectable.
• Mounting options: angled modular support plate with mounted/adjusted inlet nozzle or motor-turbine with separate/mounted inlet nozzle.
• Motor concepts: IEC IMB3 or IMB5; special options ISO H or stainless-steel shafts.
