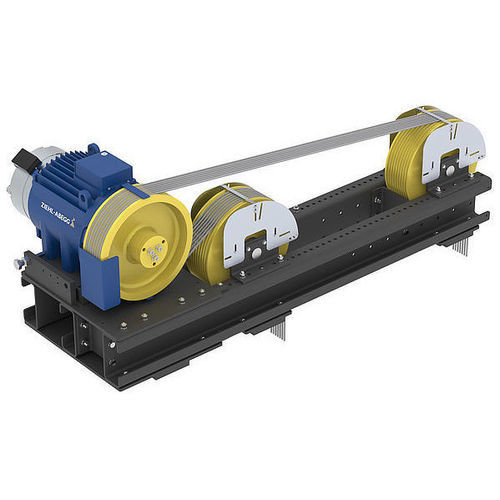

Machine frame ZAframe

Overview
From modernization projects to new-build solutions, ZIEHL-ABEGG ZAframe machine frames cover a wide range of elevator applications. Frames are designed to allow use of existing ceiling openings in modernization projects thanks to variable adjustability of rope spacing. Machine frames developed specifically for ZIEHL-ABEGG drives complete the drive package. Vibration insulation is included in the scope of delivery to ensure low-vibration, smooth operation.

Adapter plates / Adapter rails / Motor brackets

• MP400: Adapter plate for ZAtop SM190.11B – SM200.45E
• MP550: Adapter plate for ZAtop SM210.60B – SM250.80D
• MP6000: Adapter plate for ZAtop SM210.70B – SM250.80D
• MP3300: Adapter rails for ZAtop SM190.11B – SM200.45E
• MH6000B: Motor brackets for ZAtop SM210.70B – SM250.80D

Flat frame

• MF2800: Flat frame for ZAtop SM190.11B – SM200.30D elevator machines; Max. static load: 2850 kg; Adjustability of rope spacing: above traction sheave diameter
• MF4000: Flat frame for ZAtop SM200.40E – SM200.45E elevator machines; Max. static load: 4000 kg; Adjustability of rope spacing: above traction sheave diameter
• MF6000: Flat frame for ZAtop SM250.45B – SM250.80D elevator machines; Max. static load: 6000 kg; Adjustability of rope spacing: above traction sheave diameter

Elevated frame

• MH3000A: Elevated frame for ZAsyn2 SM500.12 – SM500.16 elevator machines; Max. static load: 3000 kg; Adjustability of rope spacing: 490 mm – 850 mm in 20 mm increments
• MH4000: Elevated frame for ZAtop SM200.15D – SM200.45E elevator machines; Max. static load: 4000 kg; Adjustability of rope spacing: 420 mm – 1280 mm in 20 mm increments
• MH6000B: Elevated frame for ZAtop SM210.70B – SM250.80D elevator machines; Max. static load: 4485 kg – 6000 kg; Adjustability of rope spacing: 540 mm – 1320 mm in 20 mm increments

S-wrap frame

• MS4000: S-wrap frame for ZAtop SM200.15D – SM200.45E elevator machines; Max. static load: 4000 kg; Adjustability of rope spacing: 400 mm – 1200 mm in 40 mm increments
• MS8000B: S-wrap frame for ZAtop SM250.45B – SM250.80D elevator machines; Max. static load: up to 8050 kg; Adjustability of rope spacing: 480 mm – 1440 mm in 40 mm increments

Frame for plastic-coated ropes

• MK2850B: Frame for use of plastic-coated ropes for ZAtop SM132.21/BS – SM200.30D; Max. static load: 2850 kg; Adjustability of rope spacing: 420 mm – 1200 mm in 40 mm increments
• MK2850B Retrofit: Frame for use of plastic-coated ropes for ZAtop SM132.21/BS – SM200.23D; Max. static load: 2850 kg; Adjustability of rope spacing: 420 mm – 1200 mm in 40 mm increments
• MK4850A: Frame for use of plastic-coated ropes for ZAtop SM205.40A – SM205.45A; Max. static load: 4850 kg; Adjustability of rope spacing: 540 mm – 1280 mm in 40 mm increments

Additional notes

• Various machine frame designs are available to meet different application requirements: S-wrap, elevated frames for steel cables, versions for plastic-coated cables and flat frames.
• Frames are designed to allow use of existing ceiling openings in modernization projects through variable rope spacing.
• Vibration insulation is included to ensure low-vibration and smooth operation.
• Machine frames are developed to complement ZIEHL-ABEGG elevator drives and complete the drive package.

Technical specifications

• Series name: ZAframe
• Types available: Adapter plates / Adapter rails / Motor brackets; Flat frames (MF2800, MF4000, MF6000); Elevated frames (MH3000A, MH4000, MH6000B); S-wrap frames (MS4000, MS8000B); Frames for plastic-coated ropes (MK2850B, MK2850B Retrofit, MK4850A)
• Max. static load range: from 2850 kg up to 8050 kg depending on model
• Adjustability of rope spacing: model-dependent (examples: 490–850 mm in 20 mm increments; 420–1280 mm in 20 mm increments; 400–1200 mm in 40 mm increments; 480–1440 mm in 40 mm increments)
• Included: Vibration insulation (scope of delivery)
• Application: Modernization projects and new buildings; compatible with ZIEHL-ABEGG elevator machines and drives
