Groove pulley

for cablessteelplastic

Overview

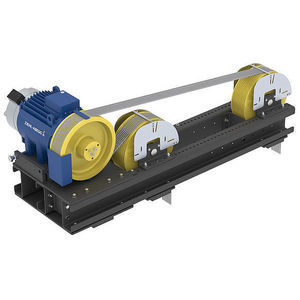

Deflection pulleys designed for use as head pulleys in machine frames or as compact deflection guides in shafts. Available in rope-friendly plastic variants for bearer cables and in steel variants for slings. High-grade grooved ball bearings ensure long service life and low-noise operation.

Product specifications — bearer cables

• Diameter range: 120 mm to 520 mm
• Rope-friendly plastic materials with excellent sliding properties
• Configurable rim widths, groove radii and number of grooves to match the suspension means
• Supplied with suitable axle and accessories for easy installation

Scope of delivery — bearer cables

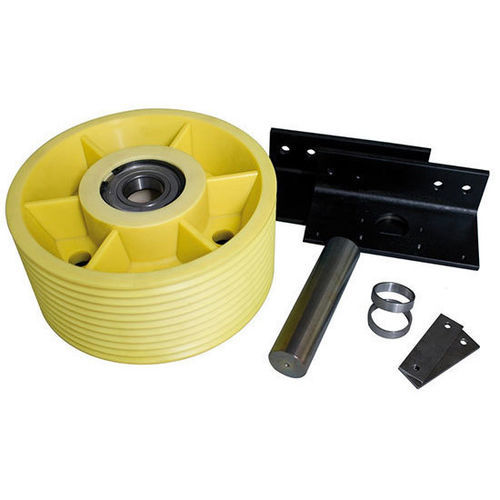

• Plastic deflection pulley with grooved ball bearing including axle
• Two axle keep plates
• Fixing screws
• Washers
• Spacer sleeves

Available as options

• Two fixing brackets

Product specifications — slings
Deflection pulleys for belt-type suspension compatible with ZAtopx. Designed for a pulley diameter of 100 mm and belt width of 30 mm. Configurable to accommodate 2 to 5 belts. Maximum axle load: 2,500 kg. Steel construction with grooved ball bearings for high load capacity.

Scope of delivery — slings

• Axle
• Sleeves
• Steel deflection pulley with grooved ball bearings
• Axle keep plate

Technical specifications

• Diameter range for bearer cables: 120 mm to 520 mm
• Diameter for slings (ZAtopx compatible): 100 mm
• Materials: plastic variants for bearer cables; steel variant for slings
• Bearing type: grooved ball bearings (high-grade for long life and quiet running)
• Configurable rim widths, groove radii and number of grooves
• Belt width (slings): 30 mm
• Number of belts (slings): configurable for 2 to 5 belts
• Maximum axle load (slings): 2,500 kg
• Typical scope of delivery items: axle, axle keep plates, sleeves, fixing screws, washers, spacer sleeves
• Available options: two fixing brackets
