Asynchronous motor HYDT

AC4-polehigh-voltage

Overview
ZIEHL-ABEGG's HYDT oil-filled high-voltage suboil motors deliver a compact, high power-density solution for offshore and marine applications. The oil-filled design and absence of a housing enable integration into space-constrained propulsion systems and deep-water equipment.

Product specification

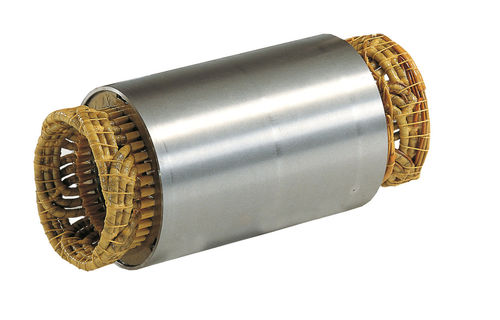

The HYDT is constructed as a stator-rotor unit without housing or mounting, facilitating direct integration in thrusters, propulsion modules or specialized marine drives. The high-voltage configuration reduces conductor cross-section requirements, which is beneficial for long supply lines.

Properties & special features
Cooling is possible either by seawater acting on the housing surface or via a separate oil cooler. Oil filling removes the need for a pressure-resistant enclosure even at great depths. Available pole options and voltage variants enable adaptation to specific installation and supply conditions. Higher output or higher voltage options are available on request.

Technical specifications

• Output up to 280 kW
• Voltage: 3,000 V
• Pole options: 2 and 4 pole
• Oil-filled high-voltage suboil motor (no pressure-resistant housing required for deep-water applications)
• Cooling options: seawater cooling on the housing or separate oil cooler
• Design: stator-rotor unit without housing or mounting for compact integration
• High power density and low weight, suitable for offshore and marine applications and high depths
• High-voltage design permits smaller conductor cross-sections (beneficial for long supply lines)
• Higher output or higher voltage available on request
