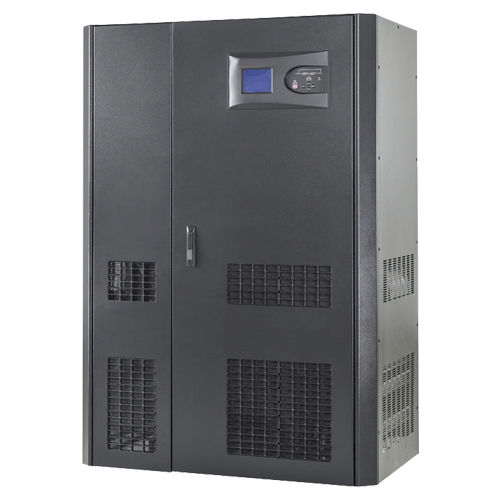

On-line UPS ZGR TIGRIS series

three-phasewith LCD displaypure sine wave

The ZGR TIGRIS series consists of an innovative range of high-performance uninterruptible power systems with three-phase input and output designed to provide a high quality permanent power source. It achieves this on the basis of power factor correction for the input by an active rectifier with IGBT-based PWM technology. The ZGR TIGRIS series provides the highest efficiency and reliability for critical consumptions with high back-up demands. It incorporates next-generation electronics that provide a wide back-up range and options for high power demands. Advantages High performance - PFC: Input power factor ≥0.99 - Output power factor 0.9 (optional) - Three-phase input and output - RFI filtering - Maintenance bypass Flexibility - Wide range of available powers - Parallelable N+1 (up to 16 units) optional - Optional extension of autonomy - SNMP card (optional) Strength - Pure sinusoidal output voltage with low harmonic distortion - IGBT rectifier - Seamless compatibility with gensets - Internal batteries in 10-30 kVA models for low autonomies - EPO: emergency stop Easy to maintain - Battery test - LCD screen - Software for comprehensive monitoring of the unit Applications - Workstations - Telecommunications - Security - Aeronautics - Healthcare - Military - Data centres - Industrial
