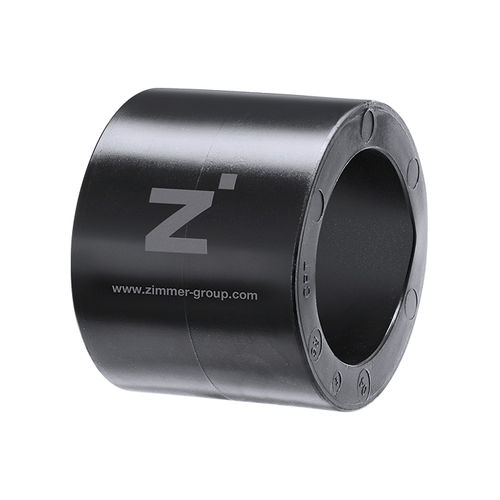

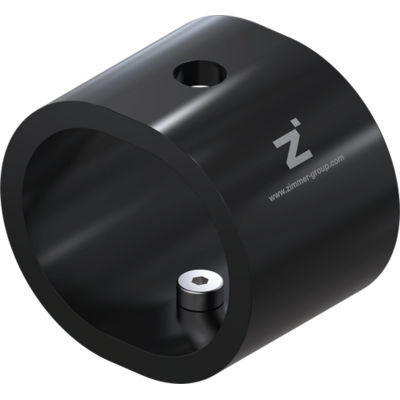

Shock damper BasicStop TPC-RS Seriesvisco-elasticfor machinessafety
Add to favorites
Compare this product
Characteristics
- Function
- shock
- Technology
- visco-elastic
- Applications
- for machines, safety
- Material
- elastomer
- Other characteristics
- radial shock absorption
Description
Maximum energy absorption per stroke in continuous operation:2.7 [Nm]
Maximum energy absorption per stroke in case of emergency stop:5.7 [Nm]
Maximum energy absorption per hour in continuous operation:81 [Nm/h]
Min. impact speed:0 [m/s]
Max. impact speed:10 [m/s]
Stroke max.:15 [mm]
Depth T:13 [mm]
Thread M:M5
Weight:4 [g]
Screw-in depth max. E:5 [mm]
Height H:23 [mm]
Width at stroke=0:30 [mm]
Width at stroke=max.:38 [mm]
Variant:Radial Standard
