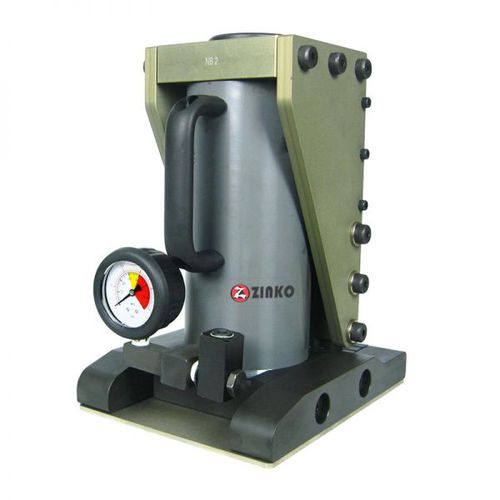

15 ton Aluminum hydraulic toe cylinder. Toe minimum height 1.18 inches, ram lift 4.92 inches.
MAXIMUM OPERATION: 10,000 PSI
Widely used for bridge or plant construction, emergency lift for rescuers after earthquake or building corruption, moving or installation of industrial machinery and shipyard equipment.
Features:
Aluminum construction allows for lighter weight and greater mobility.
Entire body, base and plunger are type III hardcoat anodized to increase wear resistance, corrosion resistance, and for internal parts to better retain a lubricating film where needed.
High strength heat treated aluminum alloys are used to provide the maximum combination of strength and fracture resistance.
Designed to lift loads with a very low clearance.
Extremely low 1.18 inch tow pickup point.
Can be used in any position.
Toe cylinder can lift loads from toe or head for greater flexibility in application.
Toe cylinder connects easily to any hand or air pump.
Hand or air pump operation allows toe cylinder to be operated from a distance whenever close quarters operation is not feasible.
Ram coupler is free spinning and can be operated in any position.
