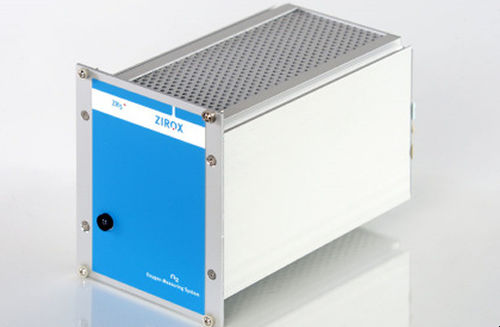

Concentration measuring module ZR5

gaslaboratoryindustrial

General Information
The ZR5 oxygen measuring module is a compact industrial sensor module based on potentiometric zirconia (ZrO2) technology for continuous monitoring and documentation of oxygen concentration in industrial, laboratory and protective gases. It is designed to detect oxygen from trace ppm levels up to volumetric percentages and to supervise inert or protective gas atmospheres in production processes.

Applications

• Protective gas monitoring in packaging and food processing
• Process control for soldering, brazing and welding under protective gas
• Quality monitoring in microelectronics and semiconductor production
• Control of protective and inert gases in surface treatment and coating processes

Technical Data Oxygen Measuring Module ZR5
Sensor: potentiometric zirconia (ZrO2) cell
Range: 1 Vol.-ppm...100 Vol.-%, 10^-15 Vol.-ppm...20.6 Vol.-% (reducing gas ranges on request)
Accuracy: relative error < 5 %
T90: ≤ 1 s (measuring cell without tube)
Housing: 19'' slot (21 TE)
Gas connection: inlet Swagelok 3 mm; outlet tube nipple 4 mm
Gas flow: 8 ± 2 l/h, regulated via internal pump (pump can be switched off)
Signal output: analog 0/4...20 mA for O2; RS-232 optional
Power supply: 24 V DC (± 20 %)
Display: LED (failure indication only)
Protection degree: IP20
Operating conditions: 0...50 °C, max. 80 % rel. humidity
Storage conditions: -20...60 °C, max. 95 % rel. humidity
Dimensions (W x H x D): 100 mm x 105 mm x 170 mm
Warm-up time: < 15 min
Power consumption: approx. 20 W

Characteristics / Technical specifications

• Measurement capability from ppm trace levels up to volumetric percentages
• Fast response time (T90 ≤ 1 s) for process-critical monitoring
• Analog output 0/4...20 mA for integration into control systems
• Compact 19'' module format for rack integration (21 TE)
• Internal, switchable pump for stable sample flow (8 ± 2 l/h)
• Optional RS-232 interface for data logging and configuration
• Low warm-up time < 15 min and approx. 20 W power consumption
