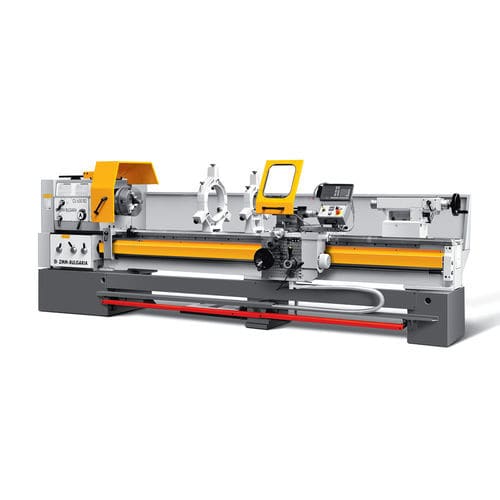

Conventional lathe CU500MTRDhorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Other characteristics
- high-precision
- Diameter
500 mm, 630 mm
(19.69 in, 24.8 in)- Spindle speed
Max.: 1,400 rpm
(8,796.459 rad.min-1)Min.: 16 rpm
(100.531 rad.min-1)- Weight
3,250 kg, 3,310 kg
(7,165 lb, 7,297 lb)
Description
CAPACITY - Height of centers - mm - 250 - 315
Swing over cross slide - mm - 300 - 430
Swing in gap - mm - 700 - 830
Width of bed - mm - 400
Distance between centers - mm - 1000; 1500; 2000; 3000; 4000; 5000
SPINDLE - Spindle nose DIN 55027 - No - 11
Spindle bore - mm - 103
Spindle taper - Metric - 120
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 3 sub-ranges
FEEDS - Number of feeds - - 120
Longitudinal feed range - mm/rev - 0,04 – 12
Cross feed range - mm/rev - 0,02 – 6
