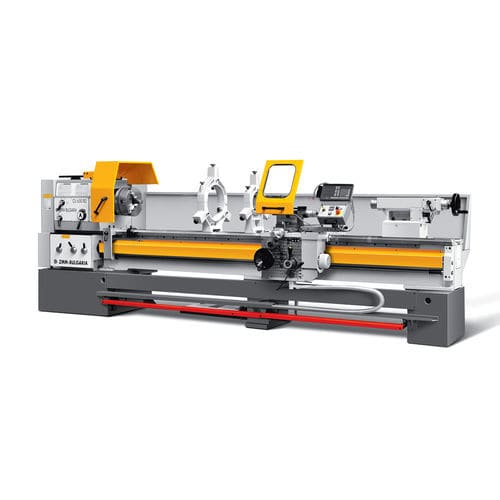

Conventional lathe CU730RDhorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Other characteristics
- high-precision
- Diameter
730 mm
(28.74 in)- Spindle speed
Min.: 16 rpm
(100.531 rad.min-1)Max.: 1,400 rpm
(8,796.459 rad.min-1)- Weight
3,500 kg
(7,716 lb)
Description
CAPACITY - Height of centers - mm - 365
Swing over cross slide - mm - 500
Swing in gap - mm - 930
Width of bed - mm - 400
Distance between centers - mm - 1000; 1500; 2000; 3000; 4000; 5000
SPINDLE - Spindle nose DIN 55027 - No - 11
Spindle taper - Metric - 120
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 3 sub-ranges
FEEDS - Number of feeds - - 120
Cross feed range - mm/rev - 0,02 – 6
