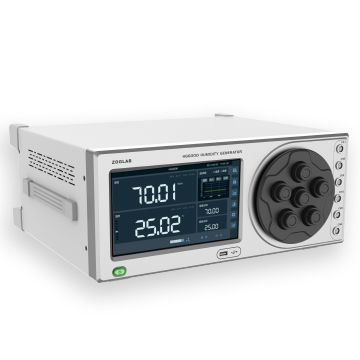

Calibration humidity generator HG6000

• Humidity control range 10~95%RH • Humidity stability ≤±0.2%RH • Temperature control range 5~50℃ • Temperature stability 0.1℃(23℃)，0.2℃(Full Scale) • Full scale stability less than 10 mins • Support to calibrate 5 sensors at the same time Specification T&RH measuring range: 5~50℃ ; 10~95%RH Control stability: ≤±0.2%RH；0.1℃(23℃)，0.2℃(Full Scale) T accuracy: ≤0.2℃ RH accuracy of reference sensor((23℃): ±1.0%RH(10~90%RH)；±2.0%RH(≤10，≥90%RH) T&RH stability of the calibration chamber: ±0.2%RH；±0.1℃ T&RH homogeneity of the calibration chamber: ±0.3%RH；±0.2℃ RH adjusting response time: Change with 30%RH costs less than 5 mins Average cooling speed: 1.0℃/min(Environment temperature than less 23℃) Heating speed: 3.0℃/min Calibration chamber inside diameter dimension: Φ110×200mm Calibration window dimensions: Φ25mm, Φ18mm, Φ15mm, Φ12mm, special dimension for option Specification Working environment: -10~40℃，10%~95%RH(Non condensing) Storage environment: -20~70℃，10%~95%RH(Non condensing) Desiccant: Silicagel, reusable Power supply: 100~240VAC 1.3A，50/60Hz Communication interfaces: RS485/232，USB，LAN，Wi-FI* Dimensions: 442×190×401mm(w/h/d) (4U，size of 19 inch rack) Weight: 12kg
