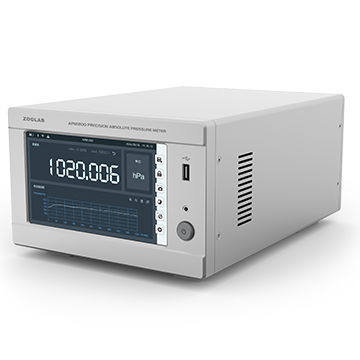

Pressure measuring device APM1200

calibrationbenchtopUSB

APM1200 precision absolute pressure meter uses high-accuracy sensor, with excellent accuracy and stability. Optional measuring range 0~1100hPa and 500~1100hPa, accuracy could reach 0.01%FS. APM1200 is an ideal solution for efficient pressure calibration with humanized design, and its 7 inch TFT touchscreen could read the pressure value directly; multiple pressure units are optional; support communication interfaces like RS232/485, USB, LAN, etc.; Built-in battery could support continuous work for 8 hours. Specification Measuring range: 0~1100/500~1100hPa Measuring accuracy: 0.01%FS Resolution: 0.001hPa Stability: Superior to 0.1hPa/year Over-pressure limitation: 120%FS Calibration circle: 365 days Specification Display: 7 inch, 800 X 480 TFT LCD touch screen Working environment: -10~40℃, 10%~95%RH(Non condensing) Storage environment: -20~70℃，10%~95%RH(Non condensing) Power supply: 100~240VAC 0.5A，50/60Hz Battery: Lithium polymer battery 14.8V/8000mAh Battery life: Continuous work for 8 hours/ standby for 90 days Communication ports: RS485/232，USB，LAN Dimensions: 215×133×302mm（w/h/d）(3U, 1/2 size of 19 inch rack ) Weight: 4.5kg
