Cable crimping machine Z+F UNIC-LSmanualpneumatic
Add to favorites
Compare this product
Characteristics
- Product handled
- cable
- Operational mode
- manual
- Drive type
- pneumatic
Description
Technical information

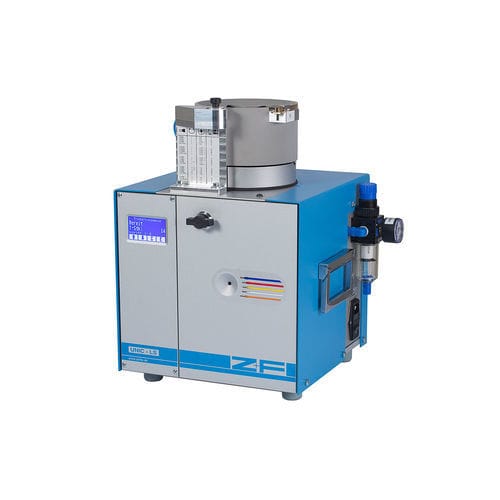

The UNIC-LS is an electropneumatic driven stripper-crimper. This machine allows
quick and reliable processing of loose insulated Z+F ferrules for cross-sections from
0.5 up to 2.5 mm2 (AWG 20 – 14) with a crimping length of 6, 8 and 10 mm. Insulated
Z+F ferrules for tri-rated wires (special size “S“) can also be processed.
Crimping range:
0,5 – 2,5 mm²
(AWG 20 – 14)
Crimping length CL:
6 / 8 / 10 mm
(0.24 / 0.31 / 0.39 in.)
Infeed length:
27 mm (1.06 in.) + CL
Cycle time:
1,5 s
Power supply:
100 - 240/50 - 60/110
V/Hz/VA
Air pressure:
5,5 bar (79.77 psi)
Dimensions (w x d x h):
390 x 330 x 460 mm
(15.4 x 13 x 18.1 in.)
Weight:
31 kg
(68.34 lbs)
Order specifications V10AL000172
