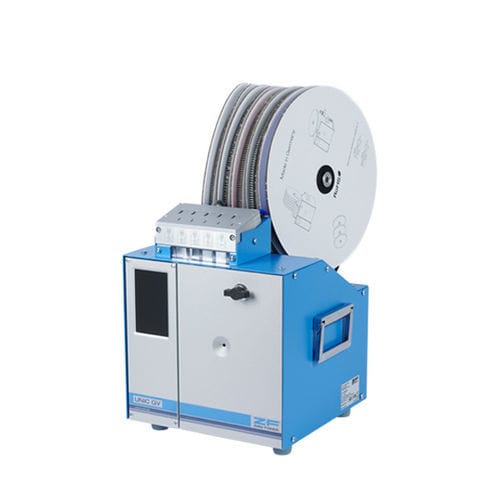

Wire end ferrules stripping and crimping machine Z+F UNIC-GV

automaticpneumaticwith automatic feed

Product overview
The UNIC-GV is an electropneumatic benchtop stripper-crimper for processing ferrules on reel. It allows processing of up to five different ferrule cross-sections without tooling change and supports ferrules for multistandard conductors. The operator selects the cross-section via a 5″ graphic touch display. Ferrules on reel in the range 0.5–2.5 mm² (AWG 20–14) with crimp lengths of 8 mm or 10 mm can be processed without downtime.

Key features

• No tooling change required
• Transparent ferrule feed cover
• Five selectable cross-sections
• Easy operation via 5″ graphic touch display
• Capacity for up to 23,000 ferrules
• Fast cycle time (Speedmode)
• Orderly ferrule storage
• Integrated process monitoring for ferrule processing

Technical data

• Crimping range: 0.5–2.5 mm² (AWG 20–14)
• Crimping length (CL): 8 / 10 mm (0.31 / 0.39 in.)
• Infeed length: 27 mm (1.06 in.) + CL
• Cycle time: 2.0 s (1.5 s in Speedmode)
• Power supply: 100–240 V; 50/60 Hz; 16 VA
• Air pressure: 5.5 bar (≈79.8 psi)
• Dimensions (W × D × H): 335 × 485 × 565 mm
• Weight: 22 kg
• Order reference: V10AG000182
