Automation Sensorik Messtechnik linear position sensors

Measuring range: 305 mm

The ANG Series sensors are non-contact, intrinsically linear position sensors with one or two independent (redundant) outputs. The sensors operate through ...

... to automatically position the torch. The Sensor PHC is compatible with any computer numeric control (CNC) and a broad range of plasma systems, and is easy to install on new or existing conventional ...

Measuring range: 200 mm - 1,600 mm
Measuring rate: 50, 60 Hz

... needs in fume cupboards. Features Infinitely-variable measurement of the position of the vertical front sash on laboratory fume cupboards Accurate detection of sash position, with no wear and tear Fast ...

Measuring rate: 6,000, 2,000 Hz
Supply voltage: 8.2 V - 30 V
Ambient temperature: -25 °C - 70 °C

Magnetic sensors series “FM” allow to detect the magnetic piston position inside the cylinders. The magnetic field generated by the magnet is used to signal eletrical circuits as required. It’s possible ...

Supply voltage: 5 V

Linear Position Sensor in Hall Effect Technology (0 mm to 10 mm max.) FEATURES Accurate linearity down to: ± 1 % Electrical strokes from 0 mm to 10 mm Long life: Greater than 10M cycles

Measuring range: 100 mm - 3,000 mm
Linearity: 0 %
Measuring rate: 10 Hz - 500 Hz

SMT3000 is a magnetostrictive position transducer with flanged connection that installs completely inside oil-pressure cylinders. Its unique design, plus a wide range of cursor configurations, ensures ...

Supply voltage: 3 V
Ambient temperature: -20 °C - 80 °C

... magnetic position sensor with digital coordinates output Features Contactless motion and position sensing Standard I²C interface Low power modes Interrupt for motion ...

Measuring range: 10 mm

Miniature Linear Gage Sensor designed for measuring where space is limited. The ultra compact Baby sensor, the BS series with 94.5 mm in length and 13 mm in thickness is ideal for mounting ...

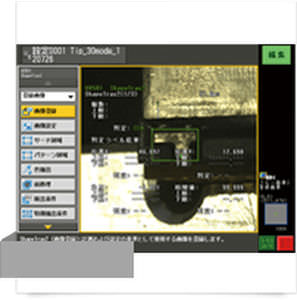

Automatic soldering position correction This sensor automatically identifies every soldering position and adjusts slippages if necessary. It drastically reduces errors and enables easier ...

Measuring range: 0 mm - 15 mm
Measuring rate: 10 Hz - 60 Hz

... Positioning Sensors The K1G series uses a combination of a CMOS linear image sensor and collimated lasers to ensure high-accuracy work piece position measurement. Tiny ...

Measuring range: 0 mm - 1 mm
Linearity: 1, 2 %
Ambient temperature: -40 °C - 80 °C

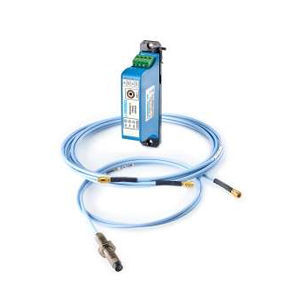

 Up to ±1mm of Shaft Axial Position / Thrust Wear Measurement.  Direct 4-20mA loop powered output.  Transducer signal output (gap voltage)  Switch selectable system cable lengths 5m, 7m and 9m.  Double screened ...

The high accuracy space saving design contributes to reduced weight and size of sets.

The LX-PA series sensor allows for a precise measurement from 0-50mm to 0-1,250m ranges. The moving part is attached to the cable end, while the body is fixed. The cable movement pulls a spring attached to a potentiometer. ...

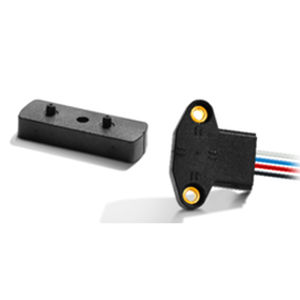

LIN Sensors – Kit with magnet Description The LIN Series sensors are non-contact linear position sensors with one or two independent outputs. The ...

Measuring range: 15 mm - 1,005 mm

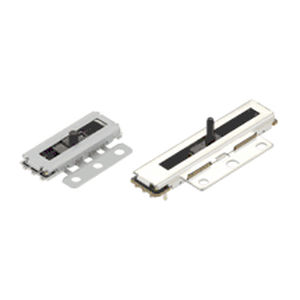

Linear Potentiometers Linear-motion Potentiometers are compact in size and light in weight and are capable of transforming mechanical linear movements into corresponding electrical ...

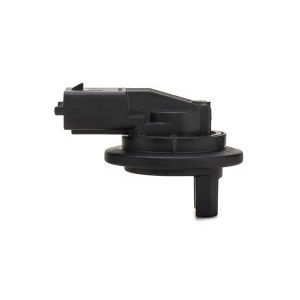

... contacting and non-contacting linear position sensors for turbo control which are designed with the intention of being integrated into the pneumatic actuator in both vacuum and pressure ...

New applications for linear output Hall effect sensors require medium accuracy and smaller package size. The Allegro A1304 linear Hall effect sensor IC has been designed ...

door lock, door position sensor, access control Traffic light indicators of multiple designs specifically designed for cleanrooms, locks, sensors, cables, custom made adhesive membranes. ...

Measuring range: 50 mm - 5,000 mm
Linearity: 0.1 %
Supply voltage: 9 V - 30 V

... magnetoresistive linear position sensor(transducer) comprises a sensing element,together with a housing, electronic circuit, and a separate permanent magnet. The permanent magnet is attached ...

Measuring range: 0.2 mm - 0.8 mm
Linearity: 0.3 % - 1 %
Measuring rate: 10 kHz

The ZED53 Series Differential Eddy Current Position Sensor is a differential eddy current position sensor with the best resolution, repeatability and stability. The power ...

Measuring range: 635, 1,270, 120, 317 mm
Linearity: 0.25, 1 %
Supply voltage: 5 V

Motionics Bluetooth string pot BluePot is a cable actuated position sensor, which provides ease-of-use and flexibility for measurement ranges up to 50 inches (1270mm). BluePot fits in small spaces, doesn't ...

Measuring rate: 1 kHz
Supply voltage: 6 V - 30 V
Ambient temperature: -40 °C - 85 °C

The Dual Output Position Sensor is a unique non-contact sensor which measures either the linear or rotary position of a metallic activator accurately ...

Measuring range: 30 mm - 1,000 mm
Linearity: 0 % - 0.1 %
Supply voltage: 24 V

Long mechanical life 100 million movements Excellent repeatability <0.01 mm Infinite resolution 5 kOhm: 30 ... 600mm, 10 kOhm: 650 ... 1000 mm

Applications * Linear position sensing * Length measuring systems Features * Magneto resistive position sensor based on the AMR effect ...
