Knuth Machine Tools CNC lathe

Diameter: 215 mm
Spindle speed: 6,000 rpm
Bar capacity: 32 mm

Tiny footprint for a powerful slant-bed lathe MACHINE CAPACITY Swing over bed diameter (mm) - 405 Swing over cross slide diameter (mm) - 240 Spindle Chuck diameter (mm) - 169 Draw Tube Diameter (mm) - 45 TURRET Type ...

Diameter: 150 mm - 650 mm
Spindle speed: 400, 500, 600 rpm
Axe X: 15,000 µm

This is a horizontal turning lathe that is used for precise grooving on the roll for optical sheet molding. The following features are equipped to obtain high-precision machine movement and machining accuracy. High-precision ...

Diameter: 74, 90 mm
Spindle speed: 3,500, 2,500 rpm
Bar capacity: 74 mm

Diameter: 34, 42 mm
Spindle speed: 50 rpm - 6,000 rpm
Axe X: 140 mm

Simultaneous left/right processing with a main turret and compact sub-turret and overlap processing with double turning tools sharply cut the machining time A half-indexing mechanism and a tool holder that can be fitted with complex ...

Diameter: 320 mm
Spindle speed: 5,000 rpm
Maximum part length: 530 mm

Complete machining of complex parts thanks to sub spindle and Y-axis Y axis with travel range ± 40 mm for superior milling operations, i.e. for complete lateral surface machining More efficiency for machining with a bar feeder Optional ...

... Cx crankshaft machining centers have highly diverse loading concepts and are ideally matched to the differing requirements in stand-alone machine and interlinked operation. ADVANTAGES HOW TO BENEFIT FROM VDF CX CRANKSHAFT ...

Diameter: 320 mm
Spindle speed: 5,000 rpm
Bar capacity: 52 mm

Continuous / simultaneous machining by both spindles thanks to automatic workpiece transfer from one spindle to the other The DUAL TURN 200 is comparable to two turning centers,with floor space reduced by approximately 30% Various Automation/Unmanned ...

Diameter: 410 mm
Spindle speed: 1,200 rpm
Axe X: 205 mm

... which makes it ideal for the optical film market. MINIMAL ERRORS, OPTIMUM PRODUCTIVITY The EcoR 1664 diamond roll turning machine is specifically engineered to machine high precision copper rolls for the production ...

Diameter: 550, 345 mm
Spindle speed: 50 rpm - 4,500 rpm
Rapids on X: 30 m/min

... installation. It is particularly suitable for the processing of complex shaped parts and can better adapt to the increasing demand for CNC machine tool functions and high accuracy demands in industries such as ,automotive, ...

Diameter: 1,400, 1,700, 2,000, 2,300, 2,800 mm
Spindle speed: 6,000 rpm
Nominal power: 45 kW

... vertical lathes of the TVU product line of Berthiez are especially suited for machining engine and turbine components, which are primarily used in the aerospace industry as well as for alternative and classical power ...

Diameter: 230 mm
Spindle speed: 3,500, 4,500, 5,000 rpm
Maximum part length: 230 mm

The CNC Turning Center LM2200TTSYY/C, designed by Hyundai WIA with years of expertise and the latest technology, is designed to maximize productivity by utilizing twin spindles and twin turrets. Complex ...

Diameter: 200, 255, 345 mm
Rapids on Z: 10, 8 m/min
Nominal power: 9, 11, 18.2 kW

The CNC Lathes from the ROMI C Series – New Generation offer great versatility for machining different types of parts, with excellent levels of power, speed of movement, and machining precision. With ...

Diameter: 330 mm
Spindle speed: 3,000 rpm
Nominal power: 40 kW

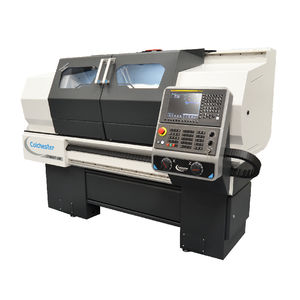

The compact Colchester Student CNC lathe is designed and engineered in the UK using the same construction as the market leading Colchester Student. Fitted with the latest Fanuc CNC controls ...

Diameter: 550 mm
Spindle speed: 0 rpm - 4,000 rpm
Maximum cutting diameter: 356 mm

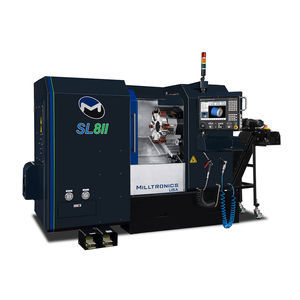

The SL8-II has an 8″ 3-jaw chuck, a maximum turning diameter of 14″, maximum turning length of 20.7″ and a 3.2″ spindle bore. This popular size machine has a 22 HP spindle motor and a 4,000 RPM spindle. Standard with a 12-station auto ...

Diameter: 1 mm - 120 mm
Spindle speed: 5,000, 8,000 rpm
Axe X: 400 mm

Our model PD is offering highest precision in a compact machine design. More than 3.000 machines are delivered all around the world for Micro machining Hardturning of small workpieces diamond cutting Mass production with Automation in ...

Diameter: 350, 400, 460, 554 mm
Spindle speed: 1 rpm - 3,500 rpm

Standard Features… Multi-repetitive Cycles G70-G76 for automatic finishing, roughing, drilling, threading and grooving cycles Toolpath Graphics for verification of part profile 10.4" Color LCD Display Inch/metric data input Absolute/incremental ...

Diameter: 300 mm

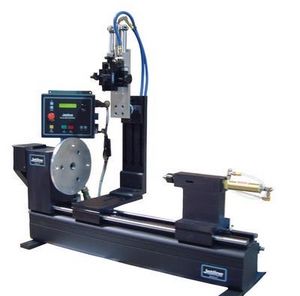

Jetline s precision weld lathes are designed for welding precision parts and provide superior accuracy and performance. The systems consist of a powered headstock, an adjustable pneumatic tailstock, and an adjustable ...

Diameter: 200 mm
Spindle speed: 100 rpm - 2,500 rpm
Nominal power: 500 W

Table lathe TYTAN 500 Vario 230V, Vario version with smooth spindle speed change. Machining parameters: motor 200*500 mm, 0.5kW/230V The lathe is designed for threading external and internal cylindrical ...

Diameter: 200, 190, 175 mm
Spindle speed: 6,000, 4,400, 8,000, 5,000 rpm
Bar capacity: 65, 51, 42 mm

Three-Turret, Three-Y-Axis, Opposed-Spindle CNC Multitasking Machine. All three Y-axes are standard. / 24st (Half Index) , 15-station turret / 15st are optionally available. Up to 72 tools. Simultaneous cutting with ...

Diameter: 250 mm
Spindle speed: 50 rpm - 4,500 rpm
Maximum part length: 500 mm

The DX 200 two-axis turning centre is ideal for the production of parts in a single setup. Particularly flexible and equipped with a turret with tools for drilling, boring and turning operations, the DX 200 turning centre helps to produce ...

Diameter: 480 mm
Spindle speed: 6,000 rpm
Maximum part length: 200 mm

CAPACITY Chuck Size - mm - 135 Max. Turning Diameter - mm - 200 Admit Between Centres - mm - - SPINDLE Spindle nose - type - Flat (Dia: 110) Hole through Spindle - mm - 36 FEED Inclination of Carriage - deg - 30°to Horizontal ...

Diameter: 620 mm

The space within the machining zone has been maximized to prevent any tool interference and provide the utmost flexibility and substantically reduce any chance of collision between the cutting tools and the machine. Axis Pathways: ...

Diameter: 3 mm - 10 mm
Maximum part length: 250 mm
Overall lenght: 1,800 mm

The outer whirling machine LWN 65 is specially designed for the production of work pieces with large numbers of pieces. The high durability of the tool as well as the short tool change time provide maximum machine availability. The machine ...

Diameter: 380 mm
Spindle speed: 6,000 rpm
Maximum cutting diameter: 100, 180 mm

Swing over saddle - mm - 320 SPINDLE Chuck diameter - inch - -6

Diameter: 100, 180 mm
Spindle speed: 6,000 rpm
Maximum part length: 175, 140 mm

... side of the shop. A-Turn • General purpose box way lathes with swings from 18” to 40” and centers up to 196” A-Turn SYM • Sub-spindle, Y axis, and/or live tooling F-Turn • High performance CNC lathe
