Knuth Machine Tools CNC lathe

Diameter: 630, 940, 800 mm
Spindle speed: 800, 1,000 rpm
Axe X: 390, 475 mm

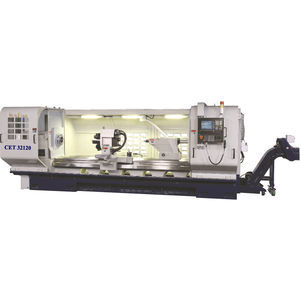

This series of lathe machine bed is the box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after the second aging treatment, it has stable performance; guide-way width (550mm), good rigidity, ...

Diameter: 350 mm
Spindle speed: 3,500 rpm
Axe X: 195 mm

Ultra-stable and Highly Rigid Box-type Base Structure The box-type design offers a ultra-wide base structure, high quality MEEHANITE® castings, oversize hardened & ground boxed ways to ensure the best machining performance by eliminating ...

Diameter: 800 mm
Spindle speed: 4,500 rpm
Maximum cutting diameter: 390 mm

The Taiwan Takisawa EX-2000 series is a new generation of high rigidity and high precision turning centers capable of handling a variety of parts. The space-saving design and faster traverse rate helps achieve high productivity, ...

Diameter: 20 mm
Rapids on X: 35,000 mm/min
Rapids on Z: 35,000 mm/min

Complex machining function adaptable to multiple industries. The 27-position tool station can accommodate up to 41-tools to yield a variety of tooling options. The B-axis power-driven tool unit (Type B) with adjustable angle to the ...

Diameter: 400, 500 mm
Spindle speed: 3,500, 4,500 rpm
Axe X: 210, 260 mm

... energy. The integral 45° inclined L-shaped bed has high modality and shock resistance to realize the high rigidity of the lathe. The bed and the saddle are hard rails and ground after quenching, and the sliding ...

Diameter: 858 mm
Spindle speed: 50 rpm - 2,000 rpm
Nominal power: 40 ch

... αp30), 18.5/ 22 ( (αp40). 2-speed ZF gearbox. Air blast. Coolant through tool. Dust collector. Automation devices. Other CNC controls. Chop cart Combination type chip conveyor for aluminum wheel. Spindle chiller. Sling ...

Diameter: 350 mm
Spindle speed: 5,000 rpm
Bar capacity: 54 mm

monobloc base Rigid linear guide with preloaded saddle Cartridge spindle with super precision ball bearings, lubricated for life. Chuck and tailstock (manual, pneumatic or hydraulic) Automatic turret Grinded ballscrews and double ...

Diameter: 400 mm
Spindle speed: 150 rpm - 2,500 rpm
Maximum cutting length: 760 mm

... Saddle & Apron The apron moves with the saddle and emulates the actions of a manual lathe. This brings reassuring familiarity to the first time user of a CNC Lathe, and a joy stick ...

Diameter: 24, 20, 22 mm
Spindle speed: 2,500 rpm
Axe X: 500 mm

From 30 years IMT Intermato S.p.A. designs, produces and optimizes machines, vertical lathes and plants for the machining of light alloy wheels. In 1983 the machine mod. SF500, a deeply innovative machine for that period, ...

Diameter: 390 mm
Spindle speed: 3,000 rpm - 4,000 rpm
Nominal power: 11, 22 kW

... its size, its robustness and its characteristics, this lathe will fit into your workshops, as a long-term addition. Compact and offering the operator an optimum working environment, this lathe is ...

Diameter: 300, 136 mm
Spindle speed: 4,000 rpm - 6,000 rpm
Maximum cutting length: 140 mm - 530 mm

*Rigid 30 deg. Slant bed cast iron base INCREASED CAPACITY *6~8 inch chuck standard *45mm bar capacity standard *C axis and VDI 25 live tooling version available ERGONOMIC CONSIDERSATIONS *Easy to use membrane touch-pad ...

Diameter: 220, 42 mm
Spindle speed: 4,500, 4,000 rpm
Maximum part length: 190 mm

●1,450mm height to the upper guard gives a clear view of the factory which makes operational supervision easier. ●On-board conversational programming software,Turnmate I, is prepared as an option. ●Minimizes the damage to the machine ...

Diameter: 500, 230 mm
Spindle speed: 5,000 rpm
Axe X: 250 mm

... measuring system Process camera Form tolerance: < 150 nm within 100 mm dia. Roughness: < 2 nm (Ra) The ultraprecision turning machine (UP-Turning machine) MTC 250 (Micro Turning Center) has a lightweight construction ...

Diameter: 550 mm
Spindle speed: 6,000, 4,500, 5,000 rpm
Rapids on X: 36,000 mm/min

CUTEX-160 maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure. Hwacheon software installed on the machine improves productivity and precision, ...

Diameter: 170 mm
Spindle speed: 6,500 rpm
Maximum part length: 200 mm

The Famar Ergo 200 vertical lathe is the perfect machine tool for turning mechanical parts of all shapes and materials up to 170 mm. Extremely stable and precise, the Ergo 200 offers the best technical performance, guaranteeing ...

Diameter: 40 mm - 115 mm
Spindle speed: 0 rpm - 1,800 rpm

ROTOR TURNING MACHINE(DUAL-SERVO) Suitable rotor turning stack height 20-120mm; Suitable rotor turning diameter Φ40mm-Φ115mm; Accuracy 0.02-0.03mm • Suitable rotor turning stack height : 20-120mm • Suitable rotor turning diameter ...

Spindle speed: 0 rpm - 2,000 rpm

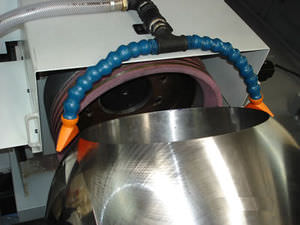

... RANGE 500 TO 2000 RPM GRINDING WHEEL DRESSING HYDRAULIC SERVOMOTOR - X AXIS FAGOR - 6Nm SERVOMOTOR - Y AXIS FAGOR - 6Nm CNC FAGOR 8055 RESOLUTION 0.001 MM (0.00004")

Diameter: 270 mm
Spindle speed: 0 rpm - 6,000 rpm
Bar capacity: 32 mm

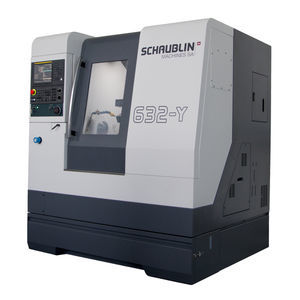

... the famous Schaublin 110 lathe, with its minimal floor space of 2.4m2, the new 632-Y-CNC lathe is the fruit of Schaublin's unique know-how in turning high-precision parts. Versatile ...

Diameter: 51, 67 mm
Spindle speed: 6,000, 4,500 rpm
Axe X: 205 mm

6~8 inch High Efficiency Y Axis Sub-Spindle Turning Center

Diameter: 1,400, 1,200 mm
Maximum part length: 1 mm - 24 mm
Nominal power: 78, 30, 51, 45 kW

A range with greater rigidity and enhanced ergonomics, as well as machine customization options. The applications engineering permits new functionalities such as smart tailstock, temperature compensation models or the SMART MANUFACTURING ...

Diameter: 730, 830, 450, 550 mm
Spindle speed: 2 rpm - 1,200 rpm
Axe X: 400 mm

... Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering ...

Diameter: 300 mm
Spindle speed: 3,000 rpm
Axe X: 290 mm

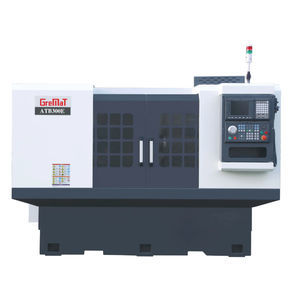

... the two ends of workpiece simultaneously. Hence, the best concentricity accuracy are achieved by using Z-MaT center drive lathe. 1. Hydraulic Collet 2. Double Turrets or Gang tools 3. Oil Spindle Cooler 4. ...

Diameter: 98, 400 mm
Spindle speed: 0 rpm - 6,000 rpm

... with the features of high precision. high speed. high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes. * High precision: importing components from Japan and ...

Diameter: 0 mm - 500 mm
Spindle speed: 0 rpm - 4,500 rpm

High precision CNC lathe with inclined bed, greatly enhanced the rigidity and stiffness, meanwhile, the turret structure improved the machining precision and the tool life time, and the internal chips ...

Diameter: 350, 380, 100, 610, 500 mm
Spindle speed: 8,000, 4,000, 2,000 rpm
Maximum part length: 1,000 mm

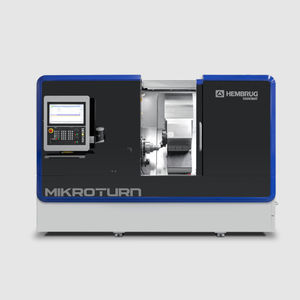

The Mikroturn® is an ultra precise, fully hydrostatic, horizontal hard turning machine for hardened workpieces up to 70 HRC. Highlights Flexibility is the norm You can machine workpieces with complex contours, ...
