CNC lathe CET series
horizontal2-axisflatbed

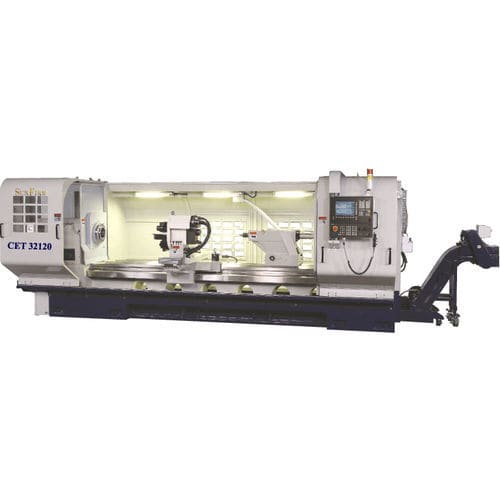

CNC lathe - CET series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / 2-axis / flatbed

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of axes

2-axis

Structure

flatbed

Number of spindles

2-spindle

Spindle mount

A2-8, A2-11

Applications

heavy-duty

Diameter

450 mm, 550 mm, 730 mm, 830 mm
(17.72 in, 21.65 in, 28.74 in, 32.68 in)

Spindle speed

Max.: 1,200 rpm
(7,539.822 rad.min-1)

Min.: 2 rpm
(12.566 rad.min-1)

Axe X

400 mm
(16 in)

Axe Z

1,000 mm, 1,500 mm, 2,000 mm, 3,000 mm, 4,000 mm
(39 in, 59 in, 79 in, 118 in, 157 in)

Rapids on X

10 m/min

Rapids on Z

8 m/min

Nominal power

15 kW, 18.5 kW
(20.4 hp, 25.2 hp)

Description

Between Center : 1000 mm ~ 4000 mm Bed Widt : 460 mm Spindle Bore : 105 mm ~ 230 mm Capacity Distance between center - 1000 mm, 1500 mm, 2000 mm, 3000 mm, 4000 mm Headstock Spindle bore - 105 mm (4") / *153 mm (6"), 230 mm (9") Carriage AC servo motor - X : 3 KW (4 HP) Z : 4 KW (5.4 HP) Cutting feed rate - X / Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *H6 , V8 Size of external turning - 25x25 mm (1"x1") Boring bar dia. - Ø 40 mm (1.57") Tailstock Quill dia - 95 mm (3.74") / *105 mm (4") Quill stroke - 230 mm (9") Taper of center - MT NO.5 / *MT NO.6 Motor Hydraulic pump - 1.5 KW (2 HP) Coolant pump - 0.375 KW (0.5 HP) Bed Width of bed - 460 mm (18") Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Hydraulic Tailstock Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
