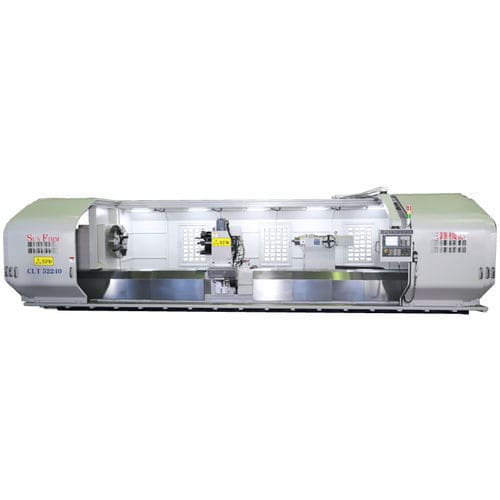

CNC lathe CLT series
horizontal2-axis2-spindle

CNC lathe - CLT series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / 2-axis / 2-spindle

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of axes

2-axis

Number of spindles

2-spindle, 4-spindle

Applications

heavy-duty

Diameter

Max.: 1,470 mm
(57.87 in)

Min.: 780 mm
(30.71 in)

Spindle speed

Max.: 680 rpm
(4,272.566 rad.min-1)

Min.: 1 rpm
(6.283 rad.min-1)

Axe X

610 mm
(24 in)

Axe Z

Max.: 10,200 mm
(402 in)

Min.: 2,200 mm
(87 in)

Rapids on X

6 m/min

Rapids on Z

6 m/min

Nominal power

37 kW, 45 kW
(50.3 hp, 61.2 hp)

Description

Distance Between Center : 2200 mm ~ 10200 mm Bed Width : 1120 mm Full Bed Width : 1435 mm Spindle Bore : 153 mm ~ 406 mm Capacity Distance between center - 2200 mm - 3200 mm - 4200 mm - 5200 mm - 6200 mm - 7200 mm - 8200 mm - 9200 mm - 10200 mm Headstock Spindle nose - A2-15 - A2-15 - A2-20 - A2-28 Spindle bore - 153 mm (6") - *230 mm (9") - *310 mm (12") - *406 mm (16") Carriage AC servo motor - X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP) Cutting feed rate - X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *V8 / *V12 Size of external turning - 32x32 mm (1-1/4"x1-1/4") Boring bar dia. - Ø 60 mm (2.4") Tailstock Quill dia - Ø 200 mm (7.9") Quill stroke - 250 mm (10") Taper of center - MT NO.6 Motor Hydraulic pump - 3.75 KW (5 HP) Coolant pump - 0.75 KW (1 HP) Bed Width of bed - 1120 mm (44") Width of way - 1280 mm (50") Standard Accessories 10.4" LCD Color Monitor MPG Hand Wheel Powerful Spindle Motor 50/60 HP Spindle Bore 6" (A2-15) Half Carriage Manual Tailstock Hydraulic System Auto Lubrication System Center & Center Sleeve Two Doors Safety Guarding Tool Box & Adjusting Tool Foundation Screws &Leveling Pads Optional Accessories Upgrade Spindle Motor (60/73 HP) Big bore Spindle (9". 12". 16") Double Chuck Attachment Boring Attachment Grinding Attachment Digital Readout Scale Full Length Carriage Y-Axis Attachment H4 Auto Turret H6 Auto Turret V8 Auto Turret V8 Live Tooling Turret V12 Live Tooling Turret Steady Rest Follow Rest C-Type Steady Rest Self-Centering Steady Rest Roller Steady Rest 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck
