CNC lathe CMT series
horizontal2-spindle4-spindle

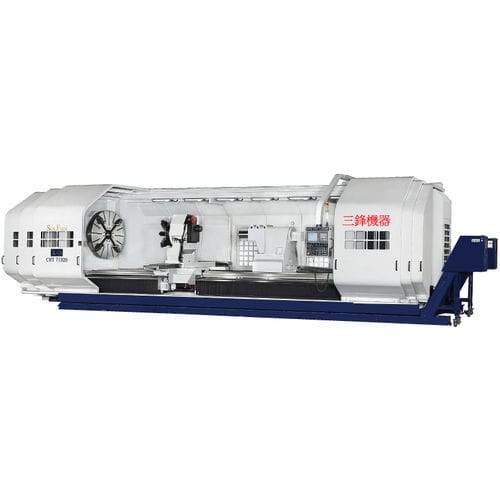

CNC lathe - CMT series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / 2-spindle / 4-spindle

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of spindles

2-spindle, 4-spindle

Applications

heavy-duty

Diameter

Max.: 2,300 mm
(90.55 in)

Min.: 1,300 mm
(51.18 in)

Spindle speed

Max.: 400 rpm
(2,513.274 rad.min-1)

Min.: 1 rpm
(6.283 rad.min-1)

Axe X

1,070 mm
(42 in)

Axe Z

Max.: 15,000 mm
(591 in)

Min.: 1,600 mm
(63 in)

Rapids on X

6 m/min

Rapids on Z

6 m/min

Nominal power

37 kW, 45 kW
(50.3 hp, 61.2 hp)

Description

Distance Between Center : 1500 mm ~ 8000 mm Bed Width : 1120 mm Spindle Bore : 153 mm ~ 532 mm Capacity Width of gap - *750 mm (30") Distance between center - 1500 mm , 2000 mm , 3000 mm , 4000 mm , 5000 mm , 6000 mm , 7000 mm , 8000 mm , 9000 mm , 10000 mm , 11000 mm , 12000 mm , 13000 mm , 14000 mm , 15000 mm Headstock Spindle nose - A2-15 / *A2-20, A2-28, special Spindle bore - 153 mm (6") - *230 mm (9") - *310 mm (12") - *609 mm (24") - *406 mm (16") - *532 mm (21") Carriage AC servo motor - X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP) Cutting feed rate - X / Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *H6 , V8 Size of external turning - 32x32 mm (1-1/4"x1-1/4") Boring bar dia. - Ø 60 mm (2.3") Tailstock Quill dia - Ø 280 mm (11") Quill stroke - 250 mm (10") Taper of center - MT NO.7 Motor Hydraulic pump - 3.75 KW (5 HP) Coolant pump - 0.75 KW (1 HP) Bed Width of bed - 1120 mm (44") Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Hydraulic Tailstock Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
