CNC lathe CST series
horizontalflatbed2-spindle

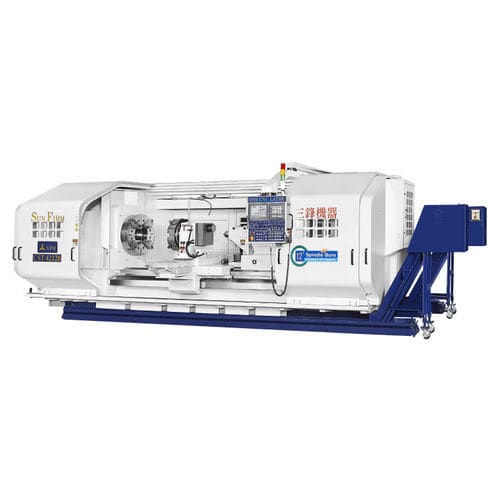

CNC lathe - CST series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / flatbed / 2-spindle

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Structure

flatbed

Number of spindles

2-spindle, 4-spindle

Spindle mount

A2-11

Applications

heavy-duty

Diameter

Min.: 680 mm
(26.77 in)

Max.: 1,270 mm
(50 in)

Spindle speed

Min.: 1 rpm
(6.283 rad.min-1)

Max.: 680 rpm
(4,272.566 rad.min-1)

Axe X

680 mm
(27 in)

Axe Z

Min.: 1,300 mm
(51 in)

Max.: 10,050 mm
(396 in)

Rapids on X

10 m/min

Rapids on Z

8 m/min

Nominal power

22 kW, 26 kW
(29.9 hp, 35.4 hp)

Description

Distance Between Center : 1000 mm ~ 7000 mm Bed Width : 665 mm Spindle Bore : 153 mm ~ 356 mm Capacity Width of gap - *560 mm (22") Distance between center - 1000 mm , 2000 mm , 3000 mm , 4000 mm , 5000 mm , 6000 mm , 7000 mm , 8000 mm , 9000 mm , 10000 mm Headstock Spindle bore - 153 mm (6") - *230 mm (9") - *255 mm (10") - *310 mm (12") - *356 mm (14") Carriage AC servo motor - X : 3 KW (4 HP) Z : 7 KW (9.4 HP) Cutting feed rate - X / Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *H6 , *V8 Size of external turning - 32x32 mm (1-1/4"x1-1/4") Boring bar dia. - Ø 50 mm (2") Tailstock Quill dia - Ø 155 mm (6") Quill stroke - 250 mm (10") Taper of center - MT NO.6 Motor Hydraulic pump - 1.5 KW (2 HP) Coolant pump - 0.375 KW (0.5 HP) Bed Width of bed - 665 mm (26") Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
