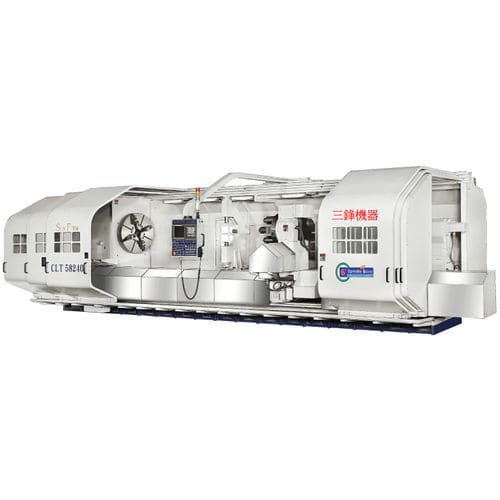

CNC lathe CLT series

horizontal2-axis4-spindle

Distance Between Center : 4200 mm ~ 8200 mm Bed Width : 1120 mm Full Bed Width : 1280 mm Spindle Bore : 153 mm ~ 310 mm Capacity Distance between center - 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm Headstock Spindle nose - A2-15 / *A2-20 Spindle bore - *406 mm (16") - *532 mm (21") - *609 mm (24") Carriage AC servo motor - X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP) Cutting feed rate - X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - V8 / *H4 Size of external turning - 32x32 mm (1-1/4"x1-1/4") Boring bar dia. - Ø 60 mm (2.4") Tailstock Quill dia - Ø 200 mm (7.9") Quill stroke - 250 mm (10") Taper of center - MT NO.6 Motor Hydraulic pump - 3.75 KW (5 HP) Coolant pump - 0.75 KW (1 HP) Bed Width of bed - 1120 mm (44") Width of way - 1280 mm (50") Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Hydraulic Tailstock Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
