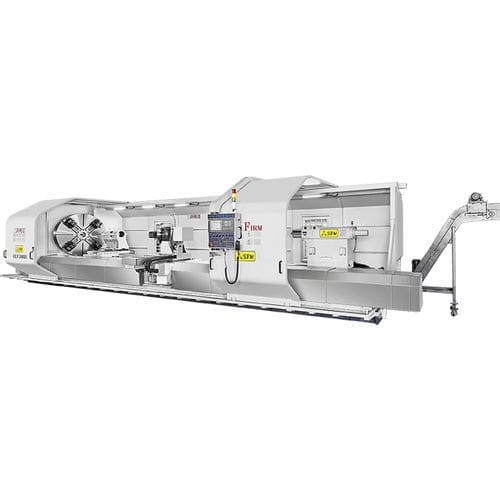

CNC lathe CL series
horizontal2-axisflatbed

CNC lathe - CL series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / 2-axis / flatbed

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of axes

2-axis

Structure

flatbed

Number of spindles

4-spindle

Applications

heavy-duty

Diameter

Max.: 2,000 mm
(78.74 in)

Min.: 1,150 mm
(45.28 in)

Axe X

770 mm
(30 in)

Axe Z

4,200 mm, 5,200 mm, 6,200 mm, 7,200 mm, 8,200 mm
(165 in, 205 in, 244 in, 283 in, 323 in)

Rapids on X

6 m/min

Rapids on Z

6 mph
(10 km/h)

Nominal power

45 kW, 55 kW
(61.2 hp, 74.8 hp)

Description

Distance Between Center : 4200 mm ~ 8200 mm Bed Width : 1525 mm Full Bed Width : 1835 mm Spindle Bore : 153 mm Capacity Distance between center - 4200 mm (168") - 5200 mm (208") - 6200 mm (248") - 7200 mm (288") - 8200 mm (328") Headstock Spindle nose - A2-20 Spindle bore - 153 mm (6") Carriage AC servo motor - X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP) Cutting feed rate - X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *V8 (Opt.) Size of external turning - 32x32 mm (1-1/4"x1-1/4") Boring bar dia. - Ø 60 mm (2.4") Tailstock Quill dia - Ø 280 mm (11") Quill stroke - 300 mm (11.8") Taper of center - MT NO.7 Motor Hydraulic pump - 3.75 KW (5 HP) Coolant pump - 0.75 KW (1 HP) Bed Width of bed - 1525 mm (60") Width of way - 1835 mm (72") Max Workpiece Loading - 15-20 Tons Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Hydraulic Tailstock Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
