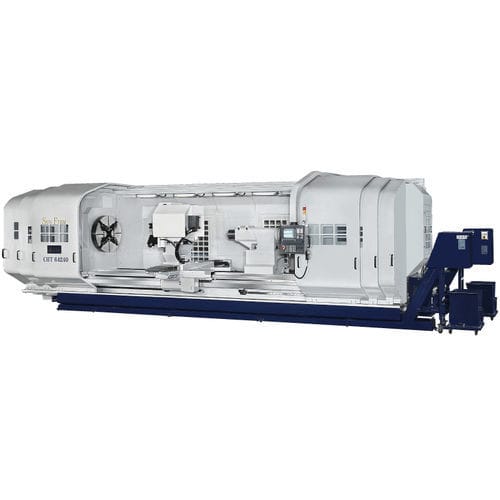

CNC lathe CHT series
horizontal2-axisflatbed

CNC lathe - CHT series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / 2-axis / flatbed

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of axes

2-axis

Structure

flatbed

Number of spindles

2-spindle, 4-spindle

Applications

heavy-duty

Maximum cutting diameter

Max.: 1,900 mm
(75 in)

Min.: 1,000 mm
(39 in)

Axe X

900 mm
(35 in)

Axe Z

Max.: 8,050 mm
(317 in)

Min.: 1,800 mm
(71 in)

Rapids on X

6 m/min

Rapids on Z

6 m/min

Nominal power

30 kW, 37 kW
(40.8 hp, 50.3 hp)

Description

Distance Between Center : 1500 mm ~ 8000 mm Bed Width : 850 mm Spindle Bore : 153 mm ~ 532 mm Capacity Width of gap - *610 mm (24") Distance between center - 1500 mm , 2000 mm , 3000 mm , 4000 mm , 5000 mm , 6000 mm , 7000 mm , 8000 mm Headstock Spindle nose - A2-15 / *A2-20, A2-28, special Spindle bore - 153 mm (6") - *230 mm (9") - *310 mm (12") - *406 mm (16") - *532 mm (21") Carriage AC servo motor - X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP) Cutting feed rate - X / Z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *H6 , V8 Size of external turning - 32x32 mm (1-1/4"x1-1/4") Boring bar dia. - Ø 60 mm (2.3") Tailstock Quill dia - Ø 200 mm (7.8") Quill stroke - 250 mm (10") Taper of center - MT NO.6 Motor Hydraulic pump - 2.3 KW (3 HP) Coolant pump - 0.56 KW (0.75 HP) Bed Width of bed - 850 mm (33") Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Hydraulic Tailstock Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
