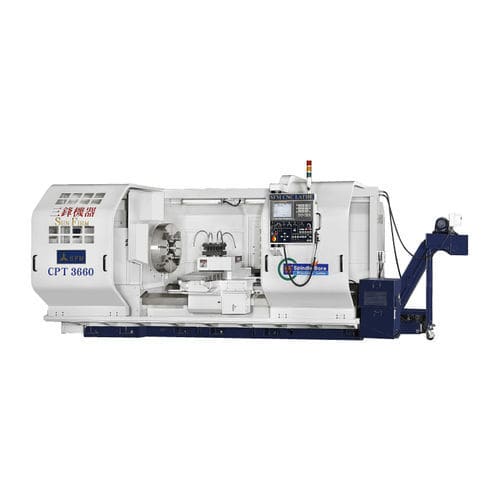

CNC lathe CPT series
horizontal2-axisflatbed

CNC lathe - CPT series - SUN FIRM MACHINERY IND. CO., LTD. - horizontal / 2-axis / flatbed

Add to favorites

Compare this product

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of axes

2-axis

Structure

flatbed

Number of spindles

4-spindle

Spindle mount

A2-11

Applications

heavy-duty

Diameter

Min.: 450 mm
(17.72 in)

Max.: 1,260 mm
(49.61 in)

Spindle speed

Min.: 1 rpm
(6.283 rad.min-1)

Max.: 1,000 rpm
(6,283.185 rad.min-1)

Axe X

480 mm
(19 in)

Axe Z

Min.: 1,300 mm
(51 in)

Max.: 5,050 mm
(199 in)

Rapids on X

10 m/min

Rapids on Z

8 m/min

Nominal power

18.5 kW, 22 kW
(25.2 hp, 29.9 hp)

Description

Distance Between Center : 1000 mm ~ 5000 mm Bed Width : 510 mm Spindle Bore : 140 mm ~ 230 mm Capacity Width of gap - *400 mm (16") Distance between center - 1000 mm , 1500 mm , 2000 mm , 3000 mm , 4000 mm, 5000 mm , 6000 mm Headstock Spindle bore - 140 mm (5.5") / *230 mm (9") Carriage AC servo motor - X : 3 KW (4 HP) Z : 7 KW (9.4 HP) Range of spindle speed - x / z : 0.001-500 mm/rev (0.0004"-20"/rev) Turret Tool station (Random) available - H4 / *H6 , V8 Size of external turning - 32x32 mm (1-1/4" x1-1/4") Boring bar dia. - Ø 50 mm (2") Tailstock Quill dia - Ø 125 mm (5") Quill stroke - 250 mm (10") Taper of center - MT N0.6 Motor Hydraulic pump - 1.5 KW (2 HP) Coolant pump - 0.375 KW (0.5 HP) Bed Width of bed - 510 mm (20") Standard Accessories Fanuc OiTF Control Coolant System 4 Way Tool Post Hydraulic System Lubrication System Center and Center Sleeve Leveling Bolts and Nuts Tool box + Tools CNC Controller Manual Optional Accessories Double Turret H4 Tool Turret H6 Tool Turret Self-Centering Steady Rest Big Spindle Bore 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck Double Chuck C-AXIS (Live Tooling) 4-Jaw Independent Chuck 4-Jaw Face Chuck Boring Attachment Hydraulic Tailstock Chip Conveyor Fagor Control Siemens Control H4 Special Turret Roller Steady Rest
