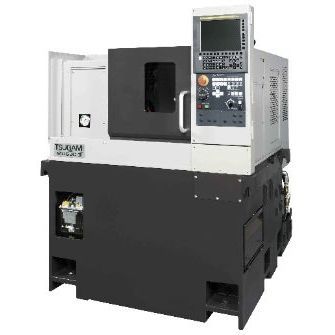

CNC turning machine M06JC-Ⅱ2-axisdrillingcutting
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Applications
- drilling
- Other characteristics
- cutting, boring, with turret, spindle, high-rigidity, compact
- Diameter
42 mm, 220 mm
(1.65 in, 8.66 in)- Spindle speed
4,000 rpm, 4,500 rpm
(25,132.741 rad.min-1, 28,274.334 rad.min-1)- Maximum part length
190 mm
(7 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
5.5 kW, 7.5 kW
(7.5 hp, 10.2 hp)- Overall lenght
1,560 mm
(61 in)- Overall width
1,265 mm
(50 in)- Overall height
1,650 mm
(65 in)- Weight
2,230 kg
(4,916 lb)
Description
●1,450mm height to the upper guard gives a clear view of the factory which makes operational supervision easier.
●On-board conversational programming software,Turnmate I, is prepared as an option.
●Minimizes the damage to the machine with retraction function by abnormal load detection.
●Safety setting up by interference prevention function at debug mode.
●Thanks to the thermal displacement compensation, the long-term stable production is realized.
