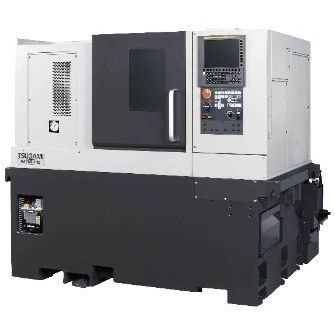

CNC turning machine M0 series 2-axishigh-productivityhigh-performance
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-productivity, high-performance, cutting, with turret, spindle, high-rigidity
- Diameter
51 mm, 65 mm, 260 mm, 280 mm
(2.01 in, 2.56 in, 10.24 in, 11.02 in)- Spindle speed
3,000 rpm, 4,000 rpm, 4,500 rpm
(18,849.556 rad.min-1, 25,132.741 rad.min-1, 28,274.334 rad.min-1)- Maximum part length
290 mm
(11 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
27,000 mm/min
(18 in/s)- Nominal power
5.5 kW, 7.5 kW, 9 kW, 11 kW
(7.5 hp, 10.2 hp, 12.2 hp, 15 hp)- Overall lenght
1,673 mm
(66 in)- Overall width
1,865 mm
(73 in)- Overall height
1,600 mm
(63 in)- Weight
3,300 kg
(7,275 lb)
Description
●Brilliant cutting capability realizes high productivity.
●On-board conversational programming software, Turnmate I, is prepared as an option.
●Minimizes the damage to the machine with retraction function by abnormal load detection.
●Safety setting up by interference prevention function at debug mode.
●Thanks to the thermal displacement compensation function, the long-term stableproduction is realized.
