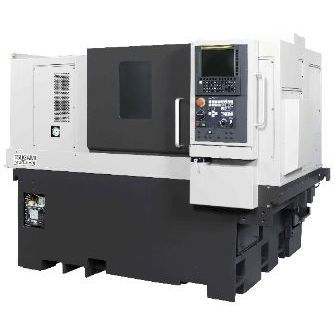

CNC lathe M08JL5-IIhorizontal2-axisheavy-duty
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Applications
- heavy-duty, for heavy turning
- Other characteristics
- high-productivity, cutting, with turret, spindle
- Diameter
65 mm, 280 mm
(2.56 in, 11.02 in)- Spindle speed
3,500 rpm, 4,000 rpm
(21,991.149 rad.min-1, 25,132.741 rad.min-1)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
27,000 mm/min
(18 in/s)- Overall lenght
1,778 mm
(70 in)- Overall width
2,170 mm
(85 in)- Overall height
1,600 mm
(63 in)- Weight
3,430 kg
(7,562 lb)
Description
●Long stroke type suitable for machining long workpieces
●On-board conversational programming software, Turnmate I, is prepared as an option.
●Minimizes the damage to the machine with retraction function by abnormal load detection.
●Safety setting up by interference prevention function at debug mode.
●Thanks to the thermal displacement compensation function, the long-term stableproduction is realized.
Catalogs
No catalogs are available for this product.
See all of Tsugami‘s catalogs
