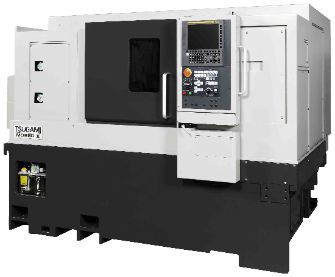

CNC turning machine M0 series3-axis12 toolspowerful
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of tool stations
- 12 tools
- Performance
- high-rigidity, high-productivity, powerful
- Associated function
- milling
- Diameter
51 mm, 65 mm, 260 mm, 280 mm
(2.01 in, 2.56 in, 10.24 in, 11.02 in)- Spindle speed
4,000 rpm, 4,500 rpm
(25,132.741 rad.min-1, 28,274.334 rad.min-1)- Maximum part length
380 mm
(15 in)- Rapids on X
24 m/min
- Rapids on Z
27 m/min
- Nominal power
5.5 kW, 7.5 kW, 11 kW
(7.5 hp, 10.2 hp, 15 hp)- Overall lenght
2,050 mm
(81 in)- Overall width
2,474 mm
(97 in)- Overall height
1,750 mm
(69 in)- Weight
5,300 kg
(11,684 lb)
Description
●Milling tools can be mounted on all positions of 12-station turret.
●The built-in motor is equipped on the main and back spindle.
●Great cutting capability realizes high productivity.
●Programs can be created easily with on-board conversational programming software (FANUC: TURN MATE i). (Option)
●Minimizes the damage to the machine by abnormal load detection.
●Safety setting up by interference prevention function
●Thanks to the thermal displacement compensation, the long-term stable production is realized.
