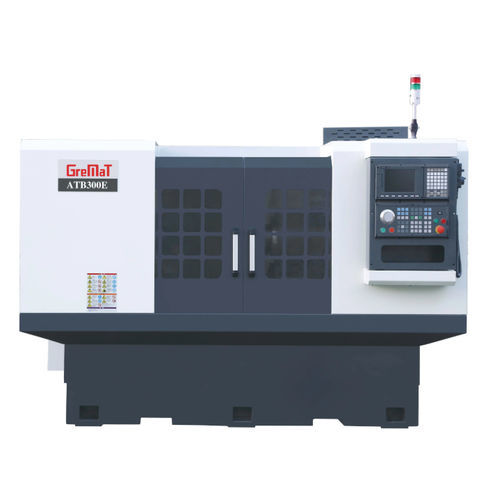

CNC turning center ATB300E
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Diameter
300 mm
(11.81 in)- Spindle speed
3,000 rpm
(18,849.556 rad.min-1)- Axe X
290 mm
(11 in)- Axe Z
180 mm
(7 in)- Rapids on X
15 m/min
- Rapids on Z
20 m/min
- Nominal power
3.7 kW, 5.5 kW, 7.5 kW
(5 hp, 7.5 hp, 10.2 hp)- Overall lenght
2,240 mm
(88 in)- Overall width
1,530 mm
(60 in)- Overall height
1,950 mm
(77 in)- Weight
3,000 kg
(6,614 lb)
Description
Hydraulic collets are built into the spindle which is placed in the center of the machine bed, and two independent Cross slides(X1/Z1, X2/Z2) carry tooling systems to turn the two ends of workpiece simultaneously. Hence, the best concentricity accuracy are achieved by using Z-MaT center drive lathe.
1. Hydraulic Collet
2. Double Turrets or Gang tools
3. Oil Spindle Cooler
4. Automatic Coolant
5. Automatic Lubrication
Capacity
Max. shaft Through hole dia. - mm - Φ32
Turrets & Toolposts
Type - Square toolpost, *Gang type
OD Tool Shank size - mm - 20×20
Boring Bar Size - mm - Φ32
Others
Slant bed degree Flat
Guideway type - LM
