- Nanjing Genvan Intelligent Equipment Co. Ltd.

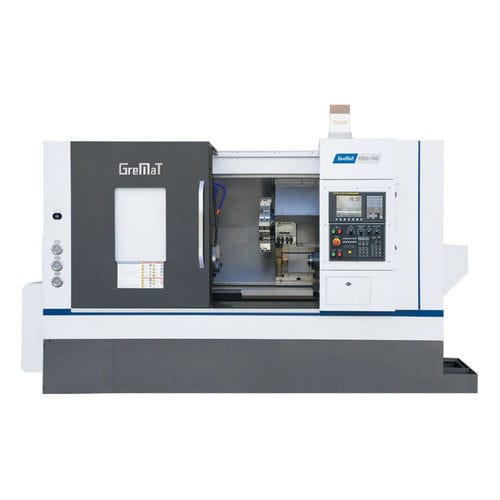

CNC turning center STH10-750B2-axisslant bedA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-8
- Drive system
- servo-driven
- Performance
- high-rigidity
- Diameter
210 mm, 320 mm, 500 mm
(8.27 in, 12.6 in, 19.69 in)- Spindle speed
3,200 rpm
(20,106.193 rad.min-1)- Maximum part length
750 mm
(30 in)- Axe X
220 mm
(9 in)- Axe Z
750 mm
(30 in)- Rapids on X
15 m/min
- Rapids on Z
15 m/min
- Nominal power
11 kW, 15 kW, 18.5 kW
(15 hp, 20.4 hp, 25.2 hp)- Overall lenght
3,300 mm
(130 in)- Overall width
1,700 mm
(67 in)- Overall height
2,200 mm
(87 in)- Weight
4,800 kg
(10,582 lb)
Description
1. 45° slant bed ---efficient chip flow and optional for chip conveyor(Right or Rear side)
2. The machine tool castings are designed by finite element analysis, and the structure is reasonable. The machine tool guideways adopt rectangular plastered sliding guide, with large span and high rigidity, which can meet the heavy cutting requirements of the machine tool;
3. The X/Z axis ball screw is a pre-load structure, which can effectively reduce the influence of temperature on accuracy and keep the machine high precision for a long time;
4. The tailstock adopts Box guideway with high rigidity with two modes of programming and manual option.
