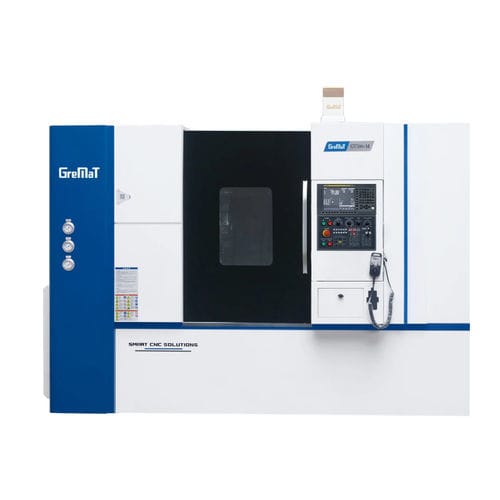

CNC turning center GT500-M2-spindleA2-612 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of spindles
- 2-spindle
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Turret
- double-turret
- Drive system
- servo-driven
- Applications
- for complex parts, for bar machining
- Performance
- high-speed
- Diameter
260 mm
(10.24 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum part length
300 mm
(12 in)- Maximum cutting diameter
210 mm
(8 in)- Axe X
190 mm
(7 in)- Axe Z
300 mm
(12 in)- Rapids on X
20 m/min
- Rapids on Z
25 m/min
- Nominal power
22 kW, 30 kW
(29.9 hp, 40.8 hp)- Overall lenght
3,100 mm
(122 in)- Overall width
2,000 mm
(79 in)- Overall height
2,200 mm
(87 in)- Weight
6,200 kg
(13,669 lb)
Description
Dual channel machining allows for 2 turrets and 2 spindles to simultaneously machine components. It machines parts from raw material to a finished component in a single setup. The machines symmetrical structure kinematics allows for even heat distribution and helps to provide continuous machining accuracy. In addition the machine is standard with motorized spindle and servo turret. it opens up new opportunities for high-speed production of bar parts.
Hydraulic 3-Jaw Chuck
Full Guard
Work Light
Tri-Color Alarm Light
Automatic Lubrication System
Automatic Coolant System
Capacity
Chuck Size - inch - 8"
Spindle& Sub Spindle
Spindle Bore - mm - Φ66
Max. Dia. of Through Hole - mm - Φ52
Axis
B Axis Travel (sub spindle) - mm - 720
B Axis Rapid Traverse - mm - 25
Turrets
Driven Tool Function - ER32
OD Tool Shank size - mm - 25×25
Boring Bar Size - mm - Φ40
Y Axis Function - Option
Structure
Slant Bed Degree - 45°
Guideway Type -
Linear Motion
Others
Power Capacity - kVA - 42
