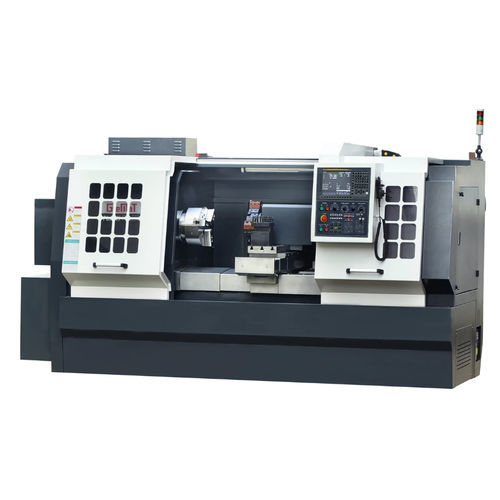

CNC turning center FTL550 Flash

2-axisflatbedA2-8

You will be hard pressed to find another linear guide way type CNC lathe that has a center mounted ball screw and stainless covers over the full length of the ball screw and guide ways. This unique, Z-MaT patented design provides the perfect combination of long-term speed, accuracy and repeatability for a CNC lathe of this size and design. 1. Piece Mono-Block Casting Flash FTL one-piece casting is more expensive to buy and machine, but it provides better damping capacity, ensuring high accuracy and precise repeatability. 2. Various Spindle Options Spindle Bore Options: 81/105/120mm Different Spindle Speed Options 3. Center Mounted Ball Screw Reduces torque – increases speed, efficiency, accuracy and machine life. 4. Heavy-Duty Linear Guideways Heavy roller and ball-type linear guideways were selected for this heavy duty machine – so it has the efficiency advantages of linear guides, but also can compete with box ways for stability during heavy cutting operations. 5. 500mm Wide Machine Base Extra wide machine base adds mass and stability to this heavy-duty lathe designed for heavy-duty turning operations. Capacity Chuck size - inch - 12" , * 15" Spindle - Spindle bore - mm - Ø105*Ø105*Ø120 Max. dia. of through hole - mm - Ø91*Ø91*Ø110 Tailstock Tailstock type - Manual , * Hydraulic Taper of quill - MT - MT5 Travel of tailstock quill - mm - 100 Structure Bed type /guideway Bed width - mm - Flat/ LM500 Others Power capacity - kVA - 18
