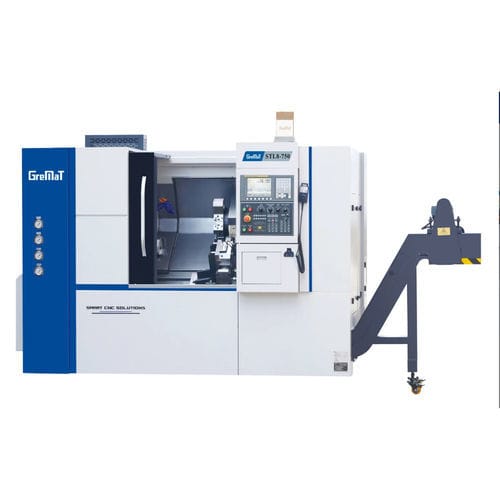

CNC turning center STL8-750

2-axisslant bedA2-6

The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians. Meehanite advanced casting on main machine body adoption with reasonable design and optimized layout assures machine accuracy and reliability in long life service. X, Z and E Axes adopt precision linear guideway with big span layout, solid structure and rigidity machine bed for good accuracy in long term. Precision ballscrews with preload technology on both axes minimizes thermal deformation, maximize transmission accuracy. Applied in automatic production of autoparts, devices, electrical products, mechancial products etc. Capacity Chuck size - inch - 8, *10 Spindle Spindle bore - mm - Ø62, *Ø75 Max. dia. of through-hole - mm - Ø52, *Ø65 Turret Center height - mm - 80, *100 Tool shank size - mm - 25×25 Tailstock Type of tailstock - SST, *SPT Taper of tailstock quill - MT3 Travel of tailstock quill - 150 Travel of tailstock - mm - 750 Structure Slant bed degree - 35° Guideway type - LM Others Power capacity - kVA - 16
