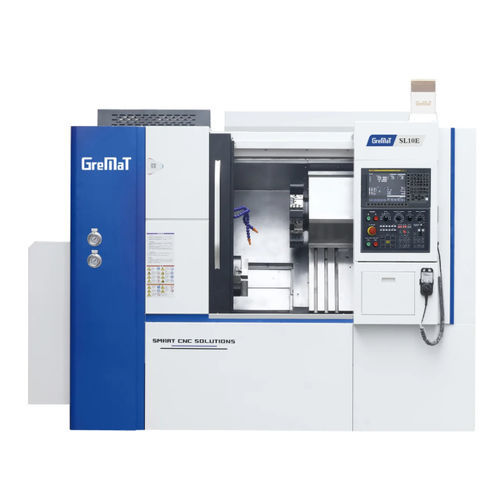

CNC turning center SL10E 2-axisslant bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Spindle mount
- A2-6, A2-8
- Number of tool stations
- 12 tools, 8 tools
- Drive system
- servo-driven
- Diameter
210 mm, 500 mm
(8.27 in, 19.69 in)- Spindle speed
2,000 rpm, 3,200 rpm, 4,000 rpm
(12,566.371 rad.min-1, 20,106.193 rad.min-1, 25,132.741 rad.min-1)- Maximum part length
300 mm, 400 mm
(12 in, 16 in)- Axe X
280 mm
(11 in)- Axe Z
300 mm, 400 mm
(12 in, 16 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
2,550 mm
(100 in)- Overall width
1,750 mm
(69 in)- Overall height
2,250 mm
(89 in)- Weight
4,000 kg
(8,818 lb)
Description
For disc and short parts, SL has the Same Performance as the STL– At a Lower Price Point, Perfect for Automation Options.
Cast Mono-Block, “True Align” Slant Bed Structure. Star SL6 and SL10E are designed with extra gang static or live tool holder options under the turret.
Hydraulic 3-jaw Chuck.
Automatic Lubrication System.
Automatic Coolant System.
Heat Exchanger Of Electric Cabinet.
Capacity
Chuck size - inch - 8" , * 10"
Spindle
Spindle bore - mm - Φ62* Φ75
Max. dia. of through-hole - mm - Φ52* Φ65
Turret
Center height - mm - 80
Tool shank size - mm - 25 ×25 , *20 ×20
Structure -
Slant bed degree - 60 °
Guideway type - LM
Others
Power capacity - kVA - 15
