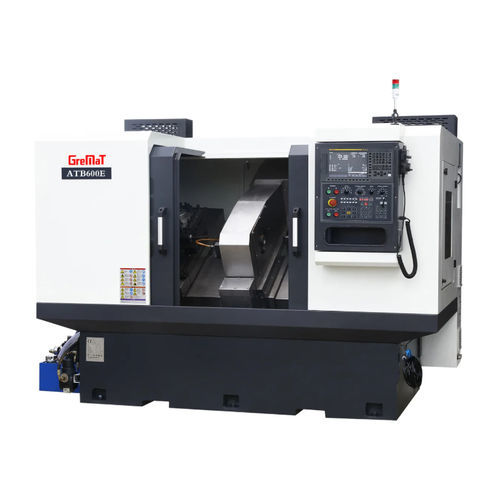

CNC turning center ATB600E 2-axisslant bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Diameter
300 mm
(11.81 in)- Spindle speed
2,000 rpm
(12,566.371 rad.min-1)- Axe X
370 mm
(15 in)- Axe Z
250 mm
(10 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
2,520 mm
(99 in)- Overall width
1,720 mm
(68 in)- Overall height
1,850 mm
(73 in)- Weight
4,200 kg
(9,259 lb)
Description
Hydraulic collets are built into the spindle which is placed in the center of the machine bed, and two independent Cross slides(X1/Z1, X2/Z2) carry tooling systems to turn the two ends of workpiece simultaneously. Hence, the best concentricity accuracy are achieved by using Z-MaT center drive lathe.
1. Hydraulic Collet
2. Double Turrets or Gang tools
3. Oil Spindle Cooler
4. Automatic Coolant
5. Automatic Lubrication
Capacity
Max. shaft Through hole dia. - mm - Φ20-72
Turrets & Toolposts
Type - Gang type
OD Tool Shank size - mm - 25×25
Boring Bar Size - mm - Φ40
Others
Slant bed degree - 30°
Guideway type - LM
