CNC turning center FL300 Flash
2-axisA2-510 tools

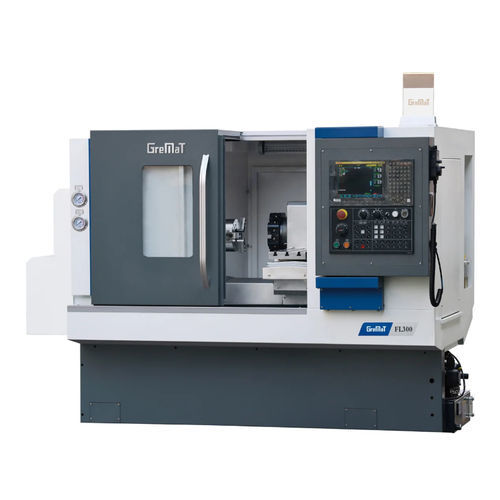

CNC turning center - FL300 Flash - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools
CNC turning center - FL300 Flash - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools
CNC turning center - FL300 Flash - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools - image - 2
CNC turning center - FL300 Flash - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools - image - 3
CNC turning center - FL300 Flash - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools - image - 4
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-5
Number of tool stations
10 tools, 8 tools, 4 tools
Other characteristics
compact
Diameter

120 mm, 300 mm
(4.72 in, 11.81 in)

Spindle speed

Min.: 2,000 rpm
(12,566.371 rad.min-1)

Max.: 5,000 rpm
(31,415.927 rad.min-1)

Maximum part length

180 mm, 260 mm, 300 mm
(7 in, 10 in, 12 in)

Rapids on X

25 m/min

Rapids on Z

15 m/min, 25 m/min

Nominal power

3.7 kW, 5.5 kW, 7.5 kW
(5 hp, 7.5 hp, 10.2 hp)

Overall lenght

2,150 mm
(85 in)

Overall width

1,600 mm
(63 in)

Overall height

1,850 mm
(73 in)

Weight

1,800 kg
(3,968 lb)

Description

The FL Series is produced at high volume in our factory - using world standard quality control processes. These facts contribute to the FL lathe’s reputation in the world market for excellent quality at a reasonable price. We produce a great machine at a great price, and pass the savings on to you. 1. One-Piece Mono-Block Casting 2. Linear Motion Guide Ways Linear Guideways are protected by stainless steel telescoping guards – provides maximum protection from chips and coolant and extended machine life. 3. CenterMounted Ball Screws Ball screws are mounted between the ways – reducing side torque and friction and increasing speed and service life. 4. Various Spindle Options Different speeds, spindle bore and chuck options to match your needs. 5. “ Bi-Laterally Symmetrical ” Complete bi-laterally symmetrical machine body and head stock design increases rigidity and stiffness in all movements of the machine. An added feature bonus is the compact dimensional casting, which keeps advanced performance in a smaller footprint. Capacity Chuck/collet - type - Pneumatic collet * Hydraulic collet , *chuck 6" Bed type/ guideway - Flat/ LM Max. swing dia. over bed - mm - Ø300 Spindle Spindle bore - mm - Ø48*Ø55*Ø62 Max. dia. of through hole - mm - Ø40*Ø46*Ø52 Others Power capacity - kVA - 9
