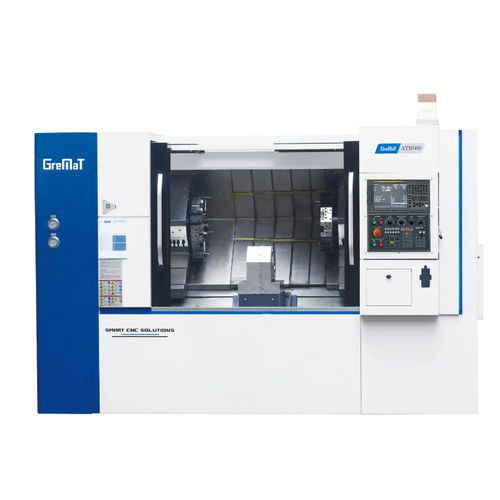

CNC turning center ATB500 2-axisslant bed12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- slant bed
- Number of tool stations
- 12 tools
- Diameter
300 mm
(11.81 in)- Spindle speed
2,000 rpm
(12,566.371 rad.min-1)- Axe X
200 mm
(8 in)- Axe Z
350 mm
(14 in)- Rapids on X
15 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
3,150 mm
(124 in)- Overall width
2,050 mm
(81 in)- Overall height
2,200 mm
(87 in)- Weight
5,000 kg
(11,023 lb)
Description
Hydraulic collets are built into the spindle which is placed in the center of the machine bed, and two independent Cross slides(X1/Z1, X2/Z2) carry tooling systems to turn the two ends of workpiece simultaneously. Hence, the best concentricity accuracy are achieved by using Z-MaT center drive lathe.
1. Hydraulic Collet
2. Double Turrets or Gang tools
3. Oil Spindle Cooler
4. Automatic Coolant
5. Automatic Lubrication
Capacity
Max. shaft Through hole dia. - mm - Φ20-72
Turrets & Toolposts
OD Tool Shank size - mm - 25×25
Boring Bar Size - mm - Φ40
Others
Slant bed degree - 45°
Guideway type - LM
