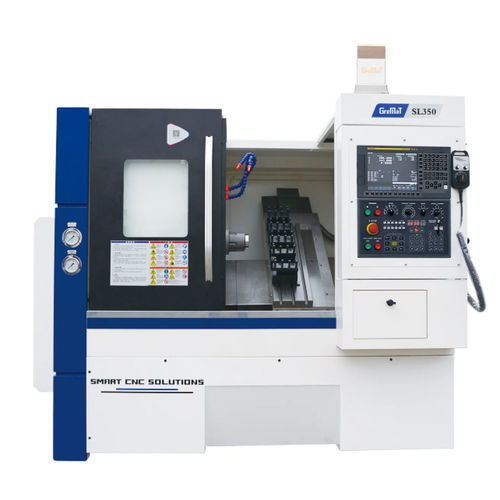

CNC turning center SL350

2-axisslant bedA2-5

1、Heat treated and annealed high quality cast iron base – provides a strong foundation for the high speed, highly accurate SL Series of CNC Lathes. 2、True Slant Bed design is highly rigid and withstands heavy cutting forces 3、Slant bed also allows for easy operator access and efficient chip removal. 4、The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously. Highly accurate parts at the lowest cost. 5、Quality machine at a value price – High volume production and good QC. Capacity Chuck/collet - inch - 6, *8 Max. swing dia. over bed - mm - Ø420 Max. length of workpiece - mm - Collet:300, *Chuck:300 Max. swing dia. over slide - mm - Ø140 Spindle Spindle bore - mm - Ø48, *Ø55 Max. dia. of through-hole - mm - Ø40, *Ø46 Spindle nose - A2-5 Max. spindle speed - rpm - 2500~5000 Main motor power - kW - 3.7/5.5, *5.5/7.5 Axis - X/Z axis travel - mm - 350, *300 X/Z rapid traverse - m/min - 28/28 Tool post Type of tool post - Gang type No. of tool stations - 5-8 OD tool and bore tool shank - mm - 20x20/Ø25 Inclined bed degree - ° - 35 Guideway type - LM Others Power capacity - kVA - 12
